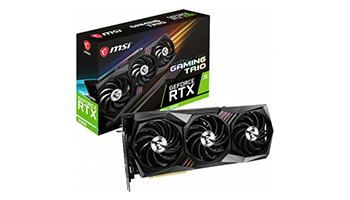

MSI RTX 3080 TI GAMING X TRIO 12G GeForce RTX 3080 Ti



MSI Video Card Nvidia GeForce RTX 3080 Ti GAMING X TRIO 12G, 12GB GDDR6X, 384bit, 912.4 GB/s, 19000 MHz Effective Memory Clock, Boost: 1770 MHz, 10240 CUDA Cores, PCIe 4.0, 3x DP 1.4, HDMI 2.1, RAY TRACING, Triple Fan, 750W Recommended PSU, Metal Backplate, 3Y



Video output

PCI Express 4.0 x16 expansion slot required

Full-height form factor

Nvidia GeForce RTX 3080 Ti video card chipset

GPU - Core Name GA102

GPU core speed 1365 MHz

GPU Core Speed ​​Boost 1770 MHz

Number of GPUs 1

Number of thread processes 10240

Texture Mapping Unit Quantity 320

Render Output Units Quantity (ROP) 112

Tensor Core Quantity 320

Ray-tracing Cores Quantity 80

Max. Monitors Supports 4

Maximum resolution 7680x4320

2D/3D features HDCP(High-Bandwidth Digital Content Protection)

Nvidia CUDA

Nvidia GPU Boost

Nvidia G-Sync

Nvidia ShadowPlay

VR Ready

Nvidia Ansel

Nvidia DLSS

Nvidia Highlights

NVIDIA Ampere Architecture

NVIDIA FreeStyle

NVIDIA Game Ready

NVIDIA Studio

2nd Gen Ray Tracing Cores

3rd Gen Tensor Cores

NVIDIA Reflex

NVIDIA Broadcast

DirectX 12.0 API support

OpenGL 4.6

Memory

Video memory type Video card memory

Memory type GDDR6X SDRAM

Installed video memory 12 GB

Video memory speed 19 Gbps

Memory bus capacity 384 bit

Memory channel width 912.4 GB/s

Supported interfaces

Number of HDMI interfaces 1

Type HDMI Interface Connectors HDMI (Type-A)

Number of monitor interface connectors 3

System Requirements

External Power 3 x 8 pin

Required power supply 750 W

Other features

Cooling system - type TORX 4.0 Fan

Features of a video card RGB LED

Included accessories User manual

Dimensions & weight

Depth 324 mm

Height 56 ​​mm

Width 140 mm

Nominal weight 1572

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 2.58 kg

Package Weight - Net (kg) 2.4 kg

Quantity per pack 1

Carton weight - Gross (kg) 12.9 kg

Retail Packaging Net Weight Carton 0.18 kg

Retail Packaging Net Weight Plastic 0.18 kg

Packages in a carton 5

Package type With packaging
