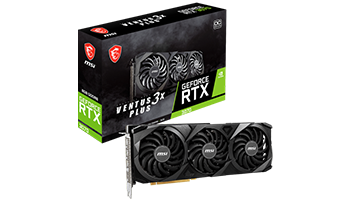

MSI RTX_3070_VENTUS_3X_PLUS_8G_OC_LHR GeForce RTX 3070



MSI Video Card NVidia GeForce RTX 3070 VENTUS 3X PLUS 8G OC LHR, 8GB GDDR6, 256-bit, 448 GB/s, 14000 MHz Effective Memory Clock, 1755 MHz Boost, 5888 CUDA Cores, PCIe 4.0, 3x DP 1.4a, HDMI 2.1, RAY TRACING, Triple Fan, 650W Recommended PSU, Metal Backplate, 3Y



Video output

PCI Express 4.0 x16 expansion slot required

Full-height form factor

Nvidia GeForce RTX 3070 video card chipset

GPU - Core name GA104-300-A1

GPU core speed 1755 MHz

Number of GPUs 1

Number of thread processes 5888

Texture Mapping Unit Quantity 184

Render Output Units Quantity (ROP) 96

Tensor Core Quantity 184

Ray-tracing Cores Quantity 46

Max. Monitors Supports 4

Maximum resolution 7680x4320

2D/3D features HDCP(High-Bandwidth Digital Content Protection)

Nvidia CUDA

Nvidia Adaptive V-Sync

Nvidia G-Sync

VR Ready

Nvidia DLSS

NVIDIA Ampere Architecture

2nd Gen Ray Tracing Cores

3rd Gen Tensor Cores

DirectX 12.0 API support

OpenGL 4.6

Memory

Video memory type Video card memory

Memory type GDDR6 SDRAM

Installed video memory 8 GB

Video memory speed 14 Gbps

Memory bus capacity 256 bit

Memory channel width 448 GB/s

Supported interfaces

Number of HDMI interfaces 1

Type HDMI Interface Connectors HDMI (Type-A)

Number of monitor interface connectors 3

System Requirements

External Power 2 x 8 pin

Required power supply 650 W

Other features

Cooling system - type TORX 3.0 Fan

Features of a video card LHR (Lite Hash Rate)

Included accessories User manual

Dimensions & weight

Depth 305 mm

Height 52 mm

Width 121 mm

Nominal weight 0.992 kg

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 2 kg

Package Weight - Net (kg) 2 kg

Quantity per pack 1

Carton weight - Gross (kg) 2 kg

Retail Packaging Net Weight Carton 0.5 kg

Retail Packaging Net Weight Plastic 0.5 kg

Packages in Carton 1

Package type Box

EAN code 4719072858926
