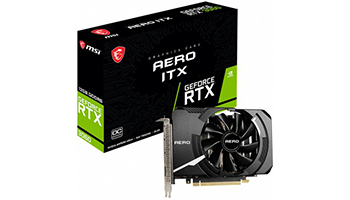

MSI RTX_3060_AERO_ITX_12G_OC GeForce RTX 3060



MSI Video Card Nvidia GeForce RTX 3060 AERO ITX 12G OC, 12GB GDDR6, 192-bit, 360 GB/s, 15 Gbps, 1792 MHz Boost, 3584 CUDA Cores, PCIe 4.0, 3x DisplayPort 1.4a, HDMI 2.1, RAY TRACING, Single-Fan, 550W Recommended PSU, Backplate, 3Y



Video output

PCI Express 4.0 x16 expansion slot required

Nvidia GeForce RTX 3060 video card chipset

GPU - Core name GA106-300-A1

GPU Core Speed ​​Boost 1792 MHz

Number of GPUs 1

Number of thread processes 3584

Texture Mapping Unit Quantity 112

Render Output Units Quantity (ROP) 48

Tensor Core Quantity 112

Ray-tracing Cores Quantity 28

Max. Monitors Supports 4

Maximum resolution 7680x3200

2D/3D features HDCP(High-Bandwidth Digital Content Protection)

Nvidia CUDA

Nvidia PhysX

Nvidia Adaptive V-Sync

Nvidia G-Sync

Nvidia ShadowPlay

VR Ready

Nvidia Ansel

Nvidia DLSS

Nvidia Highlights

NVIDIA Ampere Architecture

NVIDIA FreeStyle

NVIDIA Game Ready

2nd Gen Ray Tracing Cores

3rd Gen Tensor Cores

DirectX 12.0 API support

OpenGL 4.6

Memory

Video memory type Video card memory

Memory type GDDR6 SDRAM

Installed video memory 12 GB

Video memory speed 15 Gbps

Memory bus capacity 192 bit

Memory channel width 360 GB/s

Supported interfaces

Number of HDMI interfaces 1

Type HDMI Interface Connectors HDMI (Type-A)

Number of monitor interface connectors 3

System Requirements

External Power 8 pin

Required power supply 550 W

Other features

Cooling system - type VGA Cooler

Included accessories Documentation

Dimensions & weight

Depth 172 mm

Height 43 mm

Width 125 mm

Nominal weight 0.503 kg

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 0.6 kg

Package Weight - Net (kg) 0.6 kg

Quantity per pack 1

Carton weight - Gross (kg) 0.6 kg

Retail Packaging Net Weight Carton 0.6 kg

Retail Packaging Net Weight Plastic 0.6 kg

Packages in Carton 1

Package type Box

EAN code 4719072804619
