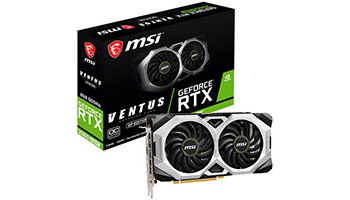

MSI RTX_2060_VENTUS_GP_OC GeForce RTX 2060



MSI Video Card Nvidia GeForce RTX 2060 VENTUS OC, 6GB GDDR6, 192bit, Effective Memory Clock: 14000MHz, Boost: 1710 MHz, 1920 CUDA Cores, PCI-E 3.0 x16, 3x DP, HDMI, RAY TRACING, TORX 2X Cooler (Double Slot), 500W Recommended PSU, Backplate, 3Y



Video output

PCI Express 3.0 x16 expansion slot required

Full-height form factor

Nvidia GeForce RTX 2060 video card chipset

GPU - Core Name TU106-200-KA-A1

GPU Core Speed ​​Boost 1710 MHz

Number of GPUs 1

Number of thread processes 1920

Texture Mapping Unit Quantity 120

Render Output Units Quantity (ROP) 48

Tensor Core Quantity 240

Ray-tracing Cores Quantity 30

Max. Monitors Supports 4

Maximum resolution 7680x4320

Vertical sync at max. resolution 60 Hz

2D/3D Features Nvidia High Dynamic-Range (HDR) Support

Nvidia G-Sync

VR Ready

Nvidia Ansel

Real-Time Ray Tracing

Nvidia DLSS

Nvidia Turing

Nvidia Highlights

DirectX 12.0 API support

OpenGL 4.6

Memory

Video memory type Video card memory

Memory type GDDR6 SDRAM

Installed video memory 6 GB

Video memory speed 14 Gbps

Memory bus capacity 192 bit

Memory channel width 336 GB/s

Supported interfaces

Number of HDMI interfaces 1

Type HDMI Interface Connectors HDMI (Type-A)

Number of monitor interface connectors 3

System Requirements

External Power 8 pin

Required power supply 500 W

Other features

Cooling system - type TORX 2.0 Fan

Included accessories Documentation

Dimensions & weight

Depth 231 mm

Height 42 mm

Width 128 mm

Nominal weight 720 g

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 0.2 kg

Package Weight - Net (kg) 0.2 kg

Quantity per pack 1

Carton weight - Gross (kg) 0.2 kg

Retail Packaging Net Weight Carton 0.2 kg

Retail Packaging Net Weight Plastic 0.2 kg

Packages in Carton 1

Package type Box

EAN code 4719072658731
