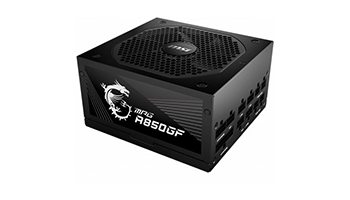

MSI MPG_A850GF A850GF, 850W, 80 Plus Gold



MSI MPG A850GF, 850W, 80 Plus Gold(Up to 90% Efficiency), ATX Form Factor, 100~240 Vac Input Voltage, 47Hz ~ 63Hz Input Frequency, 140 mm Fan, 150 x 160 x 86mm, Active PFC, OCP / OVP / OPP / OTP / SCP / UVP Protections



Design and features

Power supply type Power supply module

Power Location Internal

ATX form factor

Input voltage AC 100-240 V

Input frequency 47/63 Hz

Power input connectors - number 1

Output voltage DC 3.3/5/±12 V

Maximum output power 750 W

Over Voltage circuit protection

Undervoltage

Over Temperature

Over Current

Short Circuit Protection

Over Power

Modular Power Supply Yes

Power supply unit and adapter - Features Active PFC

80 Plus Certification 80 Plus Gold

Efficiency 90%

Current

+3.3V 22A

+5V 22A

+12V (750 )

-12V 0.3A

+5VSB 2.5 A

Output connectors

20+4-pin connector 1

4/8-pin +12V Power Connector 2

4 pin peripheral power connector 5

15 pin S-ATA connector 8

6/8-pin PCI Express Connector 6

system fans

Max. number of fans supported 1

Number of fans installed 1

Fan - diameter 140 mm

Other features

Exterior color Black

Dimensions and weight

Depth 160 mm

Height 86 mm

Width 150 mm

Warranty

Logistics information

Package Weight - Gross (kg) 5 kg

Quantity per pack 1

Carton weight - Gross (kg) 5 kg
