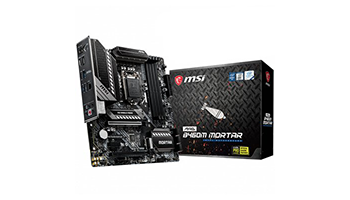

MSI MAG B460M Mortar MAG_B460M_MORTAR



MSI MAG B460M MORTAR, m-ATX, Intel LGA 1200 socket, 2x PCI-E 3.0 x16, DisplayPort, HDMI, 4 DIMMs, Dual Channel DDR4-2933Mhz(Max), 1x PCI-E 3.0 x1, 2x M.2, 6x SATA 6Gb/s, 7x USB 3.2 Gen1 5Gbps, 6x USB 2.0, 8125B 2.5G LAN, 7.1 HD Audio ALC1200



Main Board Desktop - Processor

Intel B460 motherboard chipset

Intel Celeron processor

Intel Pentium

Intel 10th Gen Processors

Socket 1200 processor socket

Max. number of processors installed 1

Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 2133MHz (PC4-17000)

2400MHz (PC4-19200)

2666MHz (PC4-21300)

2933MHz (PC4-23400)

Maximum amount of installed memory 128 GB

Total number of memory slots 4

Proposes a non-ECC error checking method

Memory features Two DDR Channels

Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10, Level 5

SATA III-600 (6)

Storage Controller:

2 x M.2 (Key M)

Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC1200 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio

Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8152B network card chipset

2.5 Gbps data exchange protocols supported

Slots provided

PCI Express 3.0 x16 2

PCI Express 3.0 x1 1

Supported interfaces

PS / 2 1

S / PDIF-in Optical 1

DisplayPort 1

HDMI 1 (HDMI (Type A))

LAN 1 (RJ-45)

USB 2.0 2 (USB 2.0 (type A))

USB 3.2 Gen 1 3 (USB 3.2 (type A)); 1 (USB 3.2 (type C))

Audio interface 5 (3.5 mm mini jack)

Desktop motherboard - Features

BIOS type AMI

UEFI BIOS features

SM BIOS 3.2

ACPI 6.2 Support

Hardware monitoring CPU Fan Tachometer

CPU Temperature

System Temperature

Power connector type 24 + 8 pin

Other features

Cables included 2 x SATA cables

Included accessories Quick start guide

User Guide

Driver CD

Main Board Desktop - Dimensions & Weight

Form factor Micro ATX

Height 243 mm

Width 243 mm

Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number

Logistic information

Package weight - Gross (kg) 0.6 kg

Package weight - Net (kg) 0.5 kg

Number in package 1

Carton weight - Gross (kg) 20 kg

Retail Packaging Net Weight Carton 0.5 kg

Retail Packaging Net Weight Plastic 0.5 kg

Packages in a carton 20

Package type With packaging
