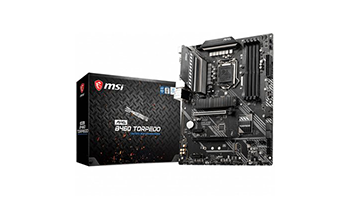

MSI MAG_B460_TORPEDO ATX



MSI MAG B460 TORPEDO, ATX, Intel LGA 1200 socket, 2x PCI-E 3.0 x16, DisplayPort, HDMI, 4 DIMMs, Dual Channel DDR4-2933Mhz(Max), 2x PCI-E 3.0 x1, 2x M.2, 6x SATA 6Gb/s, 7x USB 3.2 Gen1 5Gbps, 6x USB 2.0, 8125B 2.5G LAN, 8-Channel 7.1 HD Audio



Main Board Desktop - Processor

Intel B460 motherboard chipset

Intel Celeron processor

Intel Pentium

Intel 10th Gen Processors

Socket 1200 processor socket

Max. number of installed processors 1



Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Maximum amount of installed memory 128 GB

Total number of memory slots 4

Proposes a non-ECC error checking method

Two DDR Channels memory features

Unbuffered

XMP



Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10, Level 5

SATA III-600 (6)

Storage Controller:

PCIe 3.0 x4 / SATA (1 x M.2)

Storage Controller:

PCI Express 3.0 x4 (1 x M.2)



Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC1200 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio



Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8125B network card chipset

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols

2.5 Gbps



Slots provided

PCI Express 3.0 x16 2

PCI Express 3.0 x1 2



Supported interfaces

PS / 2 1

DisplayPort 1

LAN 1 (RJ-45)

Audio interface 5 (3.5 mm mini jack)

USB 2.0 2 (USB 2.0 (type A))

HDMI 1 (HDMI (Type A))

USB 3.2 Gen 1 4 (USB 3.2 (type A))

S / PDIF-out Optical 1 (TOSLINK)



Desktop motherboard - Features

BIOS type AMI

BIOS Features Multi-language BIOS

UEFA

128 Mb Flash ROM

SM BIOS 3.2

ACPI 6.2 Support

CPU Temperature Hardware Monitoring

System Temperature

CPU Fan multi-speed control

Chassis Fan multi-speed control

Power connector type 24 + 8 pin

Motherboard - features Intel Optane Memory Ready

Intel Smart Response Technology Support



Other features

2 x SATA cables included

Included accessories Quick start guide

User Guide

Driver CD



Main Board Desktop - Dimensions & Weight

ATX form factor

Height 244 mm

Width 305 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 3 kg

Package weight - Net (kg) 1 kg

Number in package 1

Weight per carton - Gross (kg) 3 kg

Retail Packaging Net Weight Carton 1 kg

Retail Packaging Net Weight Plastic 1 kg

Packages in cartons 1

Box type package
