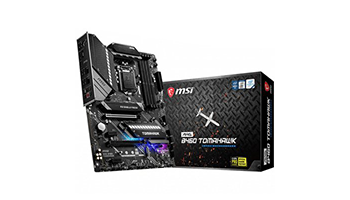

MSI MAG_B460_TOMAHAWK ATX



MSI MAG B460 TOMAHAWK,ATX,Socket 1200,Intel B460 Chipset,4 DIMMs,Dual Channel DDR4 up to 2933 MHz,1x PCIe 3.0 x16 slot,2x M.2 slots,4x USB 3.2 Gen 1,1x USB 3.2 Gen 2x2 Type-C,2x USB 2.0,1x HDMI,1x DP,2.5G+1G LAN,7.1 Audio,3y warranty



Main Board Desktop - Processor

Intel B460 motherboard chipset

Intel Celeron processor

Intel Pentium

Intel 10th Gen Processors

Socket 1200 processor socket

Max. number of installed processors 1



Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 2666MHz (PC4-21300)

2933MHz (PC4-23400)

Maximum amount of installed memory 128 GB

Total number of memory slots 4

Proposes a non-ECC error checking method

Two DDR Channels memory features

Unbuffered

XMP



Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10, Level 5

SATA III-600 (6)

Storage Controller:

PCIe 3.0 x4 / SATA (1 x M.2 (Key M))

Storage Controller:

PCI Express 3.0 x4 (1 x M.2 (Key M))



Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC1200 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio



Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8125B network card chipset

2.5 Gbps data exchange protocols supported

LAN Architecture Built-in: Gigabit Ethernet / Fast Ethernet / Ethernet (Intel i219V)



Slots provided

PCI Express 3.0 x16 2

PCI Express 3.0 x1 2



Supported interfaces

PS / 2 1

HDMI 1 (HDMI (Type A))

DisplayPort 1

LAN 2 (RJ-45)

USB 2.0 2 (USB 2.0 (type A))

USB 3.2 Gen 1 4 (USB 3.2 (type A))

USB 3.2 Gen 2 x2 1 (USB 3.2 (type C))

Audio interface 5 (3.5 mm mini jack)

S / PDIF-out Optical 1 (TOSLINK)



Desktop motherboard - Features

BIOS type AMI

BIOS Features Multi-language BIOS

UEFA

128 Mb Flash ROM

SM BIOS 3.2

ACPI 6.2 Support

CPU Temperature Hardware Monitoring

System Temperature

CPU Fan multi-speed control

Chassis Fan multi-speed control

Power connector type 24 + 8 pin

Motherboard - features Intel Optane Memory Ready

Intel Smart Response Technology Support



Other features

2 x SATA cables included

Accessories User Guide included

Quick start guide

Driver CD



Main Board Desktop - Dimensions & Weight

ATX form factor

Height 244 mm

Width 305 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 2.4 kg

Package weight - Net (kg) 1.81 kg

Number in package 1

Carton weight - Gross (kg) 2.4 kg

Retail Packaging Net Weight Carton 0.2 kg

Retail Packaging Net Weight Plastic 0.1 kg

Packages in cartons 1

Package type With packaging

EAN code 4719072730369
