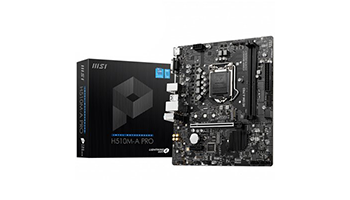

MSI H510M-A_PRO mATX



MSI H510M-A PRO,mATX,Socket 1200,Intel® H510 Chipset,Dual Channel DDR4 3200(MAX) MHz,1x PCIe x16 slot,1x HDMI 2.0b,1x VGA port,1x M.2 slot,2xUSB 3.2 Gen 1,2xUSB 2.0,Audio - 7.1,1Gbps LAN



Main Board Desktop - Processor

Intel H510 motherboard chipset

Intel 10th Gen Processors

Intel 11th Gen Processors

Socket 1200 processor socket

Max. number of installed processors 1



Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 2133MHz (PC4-17000)

2666MHz (PC4-21300)

2933MHz (PC4-23400)

3200MHz (PC4-25600)

Maximum amount of installed memory 64 GB

Total number of memory slots 2

Proposes a non-ECC error checking method

Two DDR Channels memory features

Unbuffered

Single Rank

XMP



Controller

Built-in Storage Controller:

SATA III-600 (4)

Storage Controller:

PCIe 3.0 x4 / SATA (1 x M.2 (Key M))

Support Wi-Fi Controller:

1 x M.2 (Key E)



Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC897 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio



Main Board Desktop - Networking Specifications

LAN integrated Yes

Intel i219V network card chipset

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols



Slots provided

PCI Express 4.0 x16 1

PCI Express 3.0 x1 1



Supported interfaces

HDMI 1 (HDMI (Type A))

VGA 1 (15-pin D-sub)

Audio interface 3 (3.5 mm mini jack)

LAN 1 (RJ-45)

USB 3.2 Gen 1 2 (USB 3.2 (type A))

USB 2.0 4 (USB 2.0 (type A))

PS / 2 1



Desktop motherboard - Features

Power connector type 24 + 8 pin



Main Board Desktop - Software

Supported Windows 10 operating system



Other features

2 x SATA Data Cables included

I / O Shield accessories included

Quick start guide

Screws

Driver CD



Main Board Desktop - Dimensions & Weight

Form factor Micro ATX

Height 202 mm

Width 236 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 1 kg

Package weight - Net (kg) 1 kg

Number in package 1

Carton weight - Gross (kg) 1 kg

Retail Packaging Net Weight Carton 1 kg

Retail Packaging Net Weight Plastic 1 kg

Packages in cartons 1

Box type package

EAN code 4719072802905
