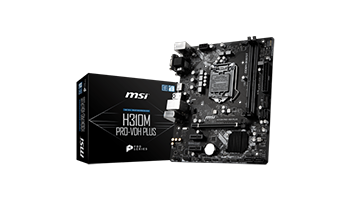

MSI H310M_PRO-VDH_PLUS mATX



MSI H310M PRO-VDH PLUS, mATX, Socket 1151, Dual Channel DDR4 up to 2666 MHz, 1 x PCIe 3.0 x16 slot, 1x HDMI, 1x DVI-D, 1x VGA, 2x USB 3.1 Gen1, 4x USB 2.0, 7.1 HD Audio, 1Gbps LAN



Main Board Desktop - Processor

Intel H310 motherboard chipset

Intel Celeron processor

Intel Pentium

Intel Core i5

Intel Core i3

Intel Core i7

Maximum CPU bus clock speed 5 GT / sec

Socket 1151 processor socket

Max. number of installed processors 1



Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 2133MHz (PC4-17000)

2400MHz (PC4-19200)

2666MHz (PC4-21300)

Maximum amount of installed memory 32 GB

Total number of memory slots 2

Proposes a non-ECC error checking method

Two DDR Channels memory features

Unbuffered

XMP



Controller

Built-in Storage Controller:

SATA III-600 (4)



Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC887 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio



Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8111H network card chipset

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols



Slots provided

PCI Express 3.0 x16 1

PCI Express 2.0 x1 2



Supported interfaces

HDMI 1 (HDMI (Type A))

VGA 1 (15-pin D-sub)

DVI 1 (DVI-D)

USB 3.1 Gen 1 2 (USB 3.1 (type A))

USB 2.0 4 (4-pin USB (type A))

LAN 1 (RJ-45)

Audio interface 3 (3.5 mm mini jack)

PS / 2 1



Desktop motherboard - Features

Power connector type 24 + 8 pin

Motherboard - features Intel Optane Memory Ready

NVMe Support



Other features

Cables included 2 x SATA 6Gb / s Cables

I / O Shield accessories included



Main Board Desktop - Dimensions & Weight

Form factor Micro ATX

Height 185 mm

Width 226 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 1.6 kg

Package weight - Net (kg) 1.4 kg

Number in package 1

Weight per carton - Gross (kg) 16 kg

Retail Packaging Net Weight Carton 14 kg

Retail Packaging Net Weight Plastic 1.4 kg

Packages in a box 10

Package type With packaging
