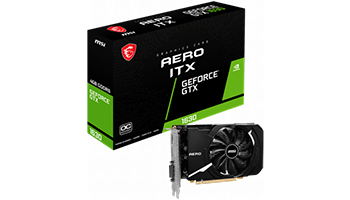

MSI GTX_1630_AERO_ITX_4G_OC GeForce GTX 1630



MSI Video Card NVidia GeForce GTX 1630 AERO ITX 4G OC, 4GB GDDR6, 64-bit, 12 Gbps, Boost: 1815 MHz, 512 CUDA Cores, 1x DP 1.4a, 1x HDMI 2.0b, 1x DVI-D, 300W Recommended PSU, 3Y



Video output

PCI Express 3.0 x16 expansion slot required

Nvidia GeForce GTX 1630 video card chipset

GPU - Core Name TU117-150-KA-A1

GPU Core Speed ​​Boost 1815 MHz

Number of GPUs 1

Number of thread processes 512

Texture Mapping Unit Quantity 32

Render Output Units Quantity (ROP) 16

Max. Monitors Supports 3

Maximum resolution 7680x4320

2D/3D features HDCP(High-Bandwidth Digital Content Protection)

Nvidia GPU Boost

Nvidia G-Sync

Nvidia ShadowPlay

Nvidia Ansel

Nvidia Turing

Nvidia Highlights

NVIDIA FreeStyle

NVIDIA Game Ready

NVIDIA Studio

NVIDIA Reflex

DirectX 12.0 API support

OpenGL 4.6

Memory

Video memory type Video card memory

Memory type GDDR6 SDRAM

Installed video memory 4 GB

Video memory speed 12 Gbps

Memory bus capacity 64 bit

Memory channel width 96 GB/s

Supported interfaces

Number of DVI interface connectors 1

Type DVI interface connectors 24 Pin DVI-D

Number of HDMI interfaces 1

Type HDMI Interface Connectors HDMI (Type-A)

Number of interface connectors for monitor 1

System Requirements

Required power supply 300 W

Other features

Cooling system - type VGA Cooler

Included accessories Documentation

Power

Power consumption during operation 75 W

Dimensions & weight

Depth 170 mm

Height 39 mm

Width 112 mm

Nominal weight 0.388 kg

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 2 kg

Package Weight - Net (kg) 1 kg

Quantity per pack 1

Carton weight - Gross (kg) 2 kg

Retail Packaging Net Weight Carton 0.5 kg

Retail Packaging Net Weight Plastic 1 kg

Packages in Carton 1

Package type Box

EAN code 4711377003537
