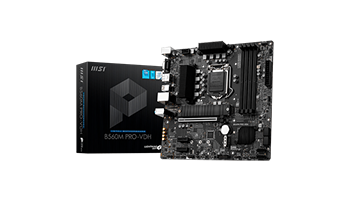

MSI B560M_PRO-VDH m-ATX



MSI B560M PRO-VDH,m-ATX,Socket 1200,Intel B560 Chipset,4 DIMMs Dual Channel DDR4 up to 5066(OC)MHz,1x PCIe x16 slot,2x M.2 slot,2x USB 3.2 Gen 2,2x USB 3.2 Gen 1,2x USB 2.0,1x HDMI,1x DP,1x VGA,2.5G LAN, 7.1 Audio,3y warranty



Main Board Desktop - Processor

Intel B560 motherboard chipset

Intel 10th Gen Processors

Intel 11th Gen Processors

Socket 1200 processor socket

Max. number of installed processors 1



Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 2133MHz (PC4-17000)

2666MHz (PC4-21300)

2933MHz (PC4-23400)

3200MHz (PC4-25600)

Maximum amount of installed memory 128 GB

Total number of memory slots 4

Proposes a non-ECC error checking method

Two DDR Channels memory features

Unbuffered

Dual Rank

Single Rank

XMP



Controller

Built-in Storage Controller:

SATA III-600 (6)

Storage Controller:

PCI Express 3.0 x4 (1 x M.2 (Key M))

Storage Controller:

PCI Express 4.0 x4 (1 x M.2 (Key M))



Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC897 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio



Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8125B network card chipset

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols

2.5 Gbps



Slots provided

PCI Express 4.0 x16 1

PCI Express 3.0 x1 2



Supported interfaces

PS / 2 1

DisplayPort 1

VGA 1 (15-pin D-sub)

LAN 1 (RJ-45)

Audio interface 3 (3.5 mm mini jack)

HDMI 1 (HDMI (Type A))

USB 3.2 Gen 2 2 (USB 3.2 (type A))

USB 3.2 Gen 1 2 (USB 3.2 (type A))

USB 2.0 2 (USB 2.0 (type A))



Desktop motherboard - Features

BIOS type AMI

BIOS Features SMBIOS 3.0 Support

Multi-language BIOS

UEFA

256 Mb Flash ROM

ACPI 6.2 Support

Power connector type 24 + 8 pin

Motherboard - features Intel Optane Memory Ready

Intel Smart Response Technology Support



Main Board Desktop - Software

Supported Windows 10 operating system



Other features

2 x SATA Data Cables included

Included accessories Quick start guide

Screws

Driver CD



Main Board Desktop - Dimensions & Weight

Form factor Micro ATX

Height 244 mm

Width 244 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 1.5 kg

Package weight - Net (kg) 1.5 kg

Number in package 1

Carton weight - Gross (kg) 1.5 kg

Retail Packaging Net Weight Carton 1.5 kg

Retail Packaging Net Weight Plastic 1.5 kg

Packages in cartons 1

Packs per Pallet 1

Box type package

EAN code 4719072813444
