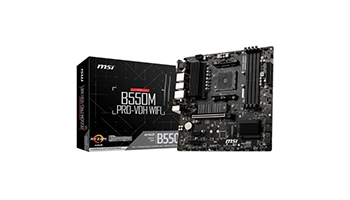

MSI B550M Pro-VDH WIFI B550M_PRO-VDH_WIFI



MSI B550M PRO-VDH WIFI, m-ATX, AMD AM4 socket, 1x PCIe 4.0/3.0 x16, DP, HDMI, VGA, 4 DIMMs, Dual Channel DDR4-4400MHz(OC), 2x PCI-E 3.0 x1, 1x M.2 Gen4, 1x M.2 Gen3, 4x SATA, 13x USB 3.2/2.0, RTL8111HN LAN, Wi-Fi-AC 3168, BT 4.2, 7.1 HD Audio



Main Board Desktop - Processor

AMD B550 motherboard chipset

AMD Ryzen Series processor

Socket AM4 processor socket

Max. number of processors installed 1

Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 1866MHz (PC4-14900)

2133MHz (PC4-17000)

2400MHz (PC4-19200)

2667MHz (PC4-21300)

2800MHz (PC4-22400)

2933MHz (PC4-23400)

3000MHz (PC4-24000)

3200MHz (PC4-25600)

Maximum amount of installed memory 128 GB

Total number of memory slots 4

Proposes an ECC / non-ECC error checking method

Memory features Two DDR Channels

Unbuffered

Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10

SATA III-600 (4)

Storage Controller:

PCIe / SATA (1 x M.2 (Key M))

Storage Controller:

PCI Express 3.0 x4 (1 x M.2 (Key M))

Plug-in-card Wi-Fi Controller:

PCI-Express ()

Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC892 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio

Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8111HN network card chipset

WI-FI IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n Wi-Fi 4

IEEE 802.11ac Wi-Fi 5

Bluetooth Yes

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols

Slots provided

PCI Express 4.0 x16 1

PCI Express 3.0 x1 2

Supported interfaces

DisplayPort 1

PS / 2 1

LAN 1 (RJ-45)

USB 2.0 2 (USB 2.0 (type A))

USB 3.2 Gen 1 4 (USB 3.2 (type A))

Audio interface 3 (3.5 mm mini jack)

HDMI 1 (HDMI (Type A))

Antenna 2

VGA 1 (15-pin D-sub)

Desktop motherboard - Features

Power connector type 24 + 8 pin

Other features

Documentation accessories included

Main Board Desktop - Dimensions & Weight

Form factor Micro ATX

Height 244 mm

Width 244 mm

Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number

Logistic information

Package weight - Gross (kg) 0.1 kg

Package weight - Net (kg) 0.1 kg

Number in package 1

Carton weight - Gross (kg) 0.1 kg

Retail Packaging Net Weight Carton 0.1 kg

Retail Packaging Net Weight Plastic 0.1 kg

Packages in cartons 1

Package type With packaging
