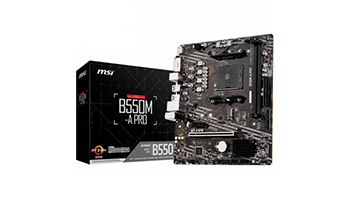

MSI B550M-A_PRO m-ATX



MSI B550M-A PRO,m-ATX,Socket AM4,AMD B550 Chipset,2 DIMMs,Dual Channel DDR4 up to 4600+(OC)MHz,1x PCIe 4.0/3.0 x16 slot,1x M.2 slot,4x USB 3.2 Gen 1,2x USB 2.0,1x HDMI,1x DVI-D,1G LAN,7.1 Audio,3y warranty



Main Board Desktop - Processor

AMD B550 motherboard chipset

AMD Ryzen Series processor

Socket AM4 processor socket

Max. number of installed processors 1



Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 1866MHz (PC4-14900)

2133MHz (PC4-17000)

2400MHz (PC4-19200)

2667MHz (PC4-21300)

2800MHz (PC4-22400)

3000MHz (PC4-24000)

3200MHz (PC4-25600)

Maximum amount of installed memory 64 GB

Total number of memory slots 2

Proposes an ECC / non-ECC error checking method

Memory characteristics Unbuffered

Dual Rank

Single Rank

Controller



Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10

SATA III-600 (4)

Storage Controller:

PCIe / SATA (1 x M.2 (Key M))



Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC892 / ALC897 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio



Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8111H network card chipset

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols



Slots provided

PCI Express 4.0 x16 1

PCI Express 3.0 x1 1



Supported interfaces

LAN 1 (RJ-45)

DVI 1 (DVI-D)

PS / 2 2

USB 3.2 Gen 1 4 (USB 3.2 (type A))

USB 2.0 2 (USB 2.0 (type A))

Audio interface 3 (3.5 mm mini jack)



Desktop motherboard - Features

Power connector type 24 + 4 pin



Other features

Cables included 2 x SATA 6Gb / s Cables

I / O Shield accessories included

Quick start guide

Driver CD



Main Board Desktop - Dimensions & Weight

Form factor Micro ATX

Height 200 mm

Width 236 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 3 kg

Package weight - Net (kg) 1 kg

Number in package 1

Weight per carton - Gross (kg) 3 kg

Retail Packaging Net Weight Carton 1 kg

Retail Packaging Net Weight Plastic 1 kg

Packages in cartons 1

Box type package
