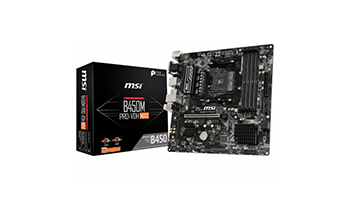

MSI B450M_PRO-VDH_MAX Main Board Desktop



MSI Main Board Desktop B450M PRO-VDH MAX (B450, AM4, 4xDIMMs, 1x PCIe 3.0 x16 slot,1x M.2 slot,4x USB 3.2 Gen1,4x USB 2.0,1x HDMI,1x DVI-D,1x VGA,Gigabit LAN, 7.1 HD Audio, mATX, Retail)



Main Board Desktop - Processor

AMD B450 motherboard chipset

AMD Athlon processor

AMD Ryzen Series 2nd Generation

AMD Ryzen Series 1st Generation

AMD Ryzen Series 3rd Generation

Socket AM4 processor socket

Max. number of installed processors 1



Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 1866MHz (PC4-14900)

2133MHz (PC4-17000)

2400MHz (PC4-19200)

2667MHz (PC4-21300)

Maximum amount of installed memory 64 GB

Total number of memory slots 4

Proposes an ECC / Non-ECC error checking method

Two DDR Channels memory features

Unbuffered

XMP



Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10

SATA III-600 (4)

Storage Controller:

PCIe 3.0 x4 / SATA (1 x M.2 (Key M))



Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC892 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio



Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8111H network card chipset

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols



Slots provided

PCI Express 3.0 x16 1

PCI Express 2.0 x1 2



Supported interfaces

PS / 2 1

USB 2.0 2 (4-pin USB (type A))

DVI 1 (DVI-D)

VGA 1 (15-pin D-sub)

HDMI 1 (HDMI (Type A))

USB 3.1 Gen 2 2 (USB 2.0 (type A))

LAN 1 (RJ-45)

Audio interface 3 (3.5 mm mini jack)



Desktop motherboard - Features

TPM (Trust Platform Module) security features

Power connector type 24 + 8 pin

Motherboard - NVMe Support features



Main Board Desktop - Dimensions & Weight

Form factor Micro ATX

Height 244 mm

Width 244 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 0.6 kg

Package weight - Net (kg) 0.6 kg

Number in package 1

Carton weight - Gross (kg) 0.6 kg

Retail Packaging Net Weight Carton 0.6 kg

Retail Packaging Net Weight Plastic 0.6 kg

Packages in cartons 1

Package type With packaging

EAN code 471907266596
