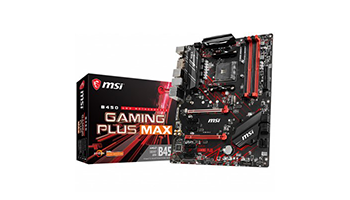

MSI B450_GAMING_PLUS_MAX ATX



MSI B450 GAMING PLUS MAX,ATX,Socket AM4,AMD B450 Chipset,4 DIMMs,Dual Channel DDR4 up to 4133(OC)MHz,1x PCIe 3.0 x16 slot,1x M.2 slot,2x USB 3.2 Gen2,2x USB 3.2 Gen1,2x USB 2.0,1x HDMI,1x DVI-D,1G LAN,7.1 Audio,3y warranty



Main Board Desktop - Processor

AMD B450 motherboard chipset

AMD Athlon processor

AMD Ryzen Series

Socket AM4 processor socket

Max. number of installed processors 1



Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 1866MHz (PC4-14900)

2133MHz (PC4-17000)

2400MHz (PC4-19200)

2667MHz (PC4-21300)

2800MHz (PC4-22400)

2933MHz (PC4-23464)

3000MHz (PC4-24000)

3200MHz (PC4-25600)

3466MHz (PC4-27700)

3733MHz (PC4-29800)

3866MHz (PC4-30900)

4000MHz (PC4-32000)

4133MHz (PC4-33066)

Maximum amount of installed memory 64 GB

Total number of memory slots 4

Two DDR Channels memory features

Unbuffered

XMP



Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10

SATA III-600 (6)

Storage Controller:

PCIe 3.0 x4 / SATA (1 x M.2 (Key M))



Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC892 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio



Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8111H network card chipset

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols



Slots provided

PCI Express 3.0 x16 1

PCI Express 2.0 x16 1

PCI Express 2.0 x1 4



Supported interfaces

PS / 2 1

LAN 1 (RJ-45)

Audio interface 6 (3.5 mm mini jack)

USB 2.0 2 (USB 2.0 (type A))

DVI 1 (DVI-D)

HDMI 1 (HDMI (Type A))

USB 3.2 Gen 1 2 (USB 2.0 (type A))

USB 3.2 Gen 2 2 (USB 2.0 (type A))



Desktop motherboard - Features

TPM (Trust Platform Module) security features

Power connector type 24 + 8 pin

Motherboard - features AMD CrossFire technology

NVMe Support



Main Board Desktop - Software

Supported Windows 7 operating system

Windows 8

Windows 8.1

Windows 10



Main Board Desktop - Dimensions & Weight

ATX form factor

Height 244 mm

Width 305 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 0.7 kg

Package weight - Net (kg) 0.7 kg

Number in package 1

Carton weight - Gross (kg) 0.7 kg

Retail Packaging Net Weight Carton 0.7 kg

Retail Packaging Net Weight Plastic 0.7 kg

Packages in cartons 1

Package type With packaging

EAN code 4719072659226
