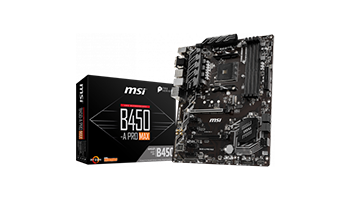

MSI B450-A Pro Max B450-A_PRO_MAX



MSI B450-A PRO MAX, ATX, AMD AM4 Socket, 1x PCI-E 3.0 x16, 1x PCI-E 2.0 x16, VGA, HDMI, DVI-D, 4 DIMMs, Dual Channel DDR4-4133+ (OC), 4x PCI-E x1, 1x M.2, 6x SATA 6Gb/s, 2x USB 3.2(Gen2), 4x USB 3.2(Gen1), 6x USB 2.0, 8111H LAN, 7.1 HD Audio



Main Board Desktop - Processor

AMD B450 motherboard chipset

AMD Athlon processor

AMD Ryzen Series

Socket AM4 processor socket

Max. number of processors installed 1

Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 1866MHz (PC4-14900)

2133MHz (PC4-17000)

2400MHz (PC4-19200)

2667MHz (PC4-21300)

2800MHz (PC4-22400)

2933MHz (PC4-23400)

3000MHz (PC4-24000)

3200MHz (PC4-25600)

3466MHz (PC4-27700)

3733MHz (PC4-29800)

3866MHz (PC4-30900)

4000MHz (PC4-32000)

4133MHz (PC4-33066)

Maximum amount of installed memory 64 GB

Total number of memory slots 4

Memory features Two DDR Channels

Unbuffered

XMP

Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10

SATA III-600 (6)

Storage Controller:

PCIe 3.0 x4 / SATA (1 x M.2 (Key M))

Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC892 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio

Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8111H network card chipset

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols

Slots provided

PCI Express 3.0 x16 1

PCI Express 2.0 x16 1

PCI Express 2.0 x1 4

Supported interfaces

PS / 2 1

LAN 1 (RJ-45)

Audio interface 6 (3.5 mm mini jack)

USB 2.0 2 (USB 2.0 (type A))

DVI 1 (DVI-D)

HDMI 1 (HDMI (Type A))

VGA 1 (15-pin D-sub)

USB 3.2 Gen 1 2 (USB 2.0 (type A))

USB 3.2 Gen 2 2 (USB 2.0 (type A))

Desktop motherboard - Features

TPM (Trust Platform Module) security features

Power connector type 24 + 8 pin

Main Board Desktop - Software

Supported Windows 7 operating system

Windows 8

Windows 8.1

Windows 10

Main Board Desktop - Dimensions & Weight

ATX form factor

Height 244 mm

Width 305 mm

Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number

Logistic information

Package weight - Gross (kg) 0.7 kg

Package weight - Net (kg) 0.7 kg

Number in package 1

Carton weight - Gross (kg) 0.7 kg

Retail Packaging Net Weight Carton 0.7 kg

Retail Packaging Net Weight Plastic 0.7 kg

Packages in cartons 1

Package type With packaging

EAN code 4719072665975
