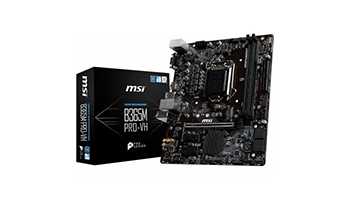

MSI B365M PRO-VH B365M_PRO-VH



MSI B365M PRO-VH, m-ATX, Intel LGA 1151 Socket, 1 x PCI-E 3.0 x16 slot, VGA, HDMI, 2 DIMMs, Dual Channel DDR4 up to 2666, 2 x PCI-E x1 slots, 1 x M.2 slot, 6 x SATA 6Gb/s, 6 x USB 3.1(Gen1) + 6 x USB 2.0, 8111H Gigabit LAN, 7.1 HD Audio



Main Board Desktop - Processor

Intel B365 motherboard chipset

Intel 8th Gen Processors

Intel 9th ​​Gen Processors

Socket 1151 processor socket

Max. number of processors installed 1

Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 2133MHz (PC4-17000)

2400MHz (PC4-19200)

2666MHz (PC4-21300)

Maximum amount of installed memory 32 GB

Total number of memory slots 2

Offers a Non-ECC error checking method

Memory features Two DDR Channels

Unbuffered

XMP

Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 5, Level 1+

SATA III-600 (6)

Storage Controller:

PCIe 3.0 x4 / SATA (1 x M.2 (Key M))

Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC887 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio

Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8111H network card chipset

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols

Slots provided

PCI Express 3.0 x16 1

PCI Express 3.0 x1 2

Supported interfaces

HDMI 1 (HDMI (Type A))

USB 2.0 2 (4-pin USB (type A))

USB 3.1 Gen 1 4 (USB 2.0 (type A))

LAN 1 (RJ-45)

Audio interface 3 (3.5 mm mini jack)

PS / 2 1

VGA 1 (15-pin D-sub)

Desktop motherboard - Features

BIOS type AMI

UEFI BIOS features

Hardware monitoring System Temperature

Voltage system

Power connector type 24 + 8 pin

Other features

2 x SATA Data Cables included

I / O Shield accessories included

A short user guide

Main Board Desktop - Dimensions & Weight

Form factor Micro ATX

Height 185 mm

Width 226 mm

Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number

Logistic information

Package weight - Gross (kg) 0.6 kg

Package weight - Net (kg) 0.6 kg

Number in package 1

Carton weight - Gross (kg) 0.6 kg

Retail Packaging Net Weight Carton 0.6 kg

Retail Packaging Net Weight Plastic 0.6 kg

Packages in cartons 1

Package type With packaging

EAN code 4719072622749
