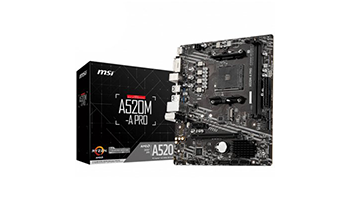

MSI A520M-A PRO A520M-A PRO



MSI A520M-A PRO, m-ATX, AMD AM4 Socket, 1x PCI-E 3.0 x16 slot, HDMI, DVI-D, 2 DIMMs, Dual Channel DDR4-4600MHz (OC), 1x PCI-E 3.0 x1 slot, 1x M.2 Gen3 x4 slot, 4x SATA 6Gb/s ports, 6x USB 3.2 Gen 1 5Gbps + 6x USB 2.0, RTL8111H LAN, 7.1 HD Audio



Main Board Desktop - Processor

AMD A520 motherboard chipset

AMD Ryzen Series processor

Socket AM4 processor socket

Max. number of processors installed 1

Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 2133MHz (PC4-17000)

2400MHz (PC4-19200)

2666MHz (PC4-21300)

2800MHz (PC4-22400)

3000MHz (PC4-24000)

3200MHz (PC4-25600)

Maximum amount of installed memory 128 GB

Total number of memory slots 2

Proposes an ECC error checking method

Memory features Two DDR Channels

Unbuffered

Controller

Built-in Storage Controller:

PCIe 3.0 x4 / SATA (1 x M.2 (Key M))

Storage Controller:

Supports: Level 0, Level 1, Level 1+

SATA III-600 (4)

Main Board Desktop - Audio Output

Audio integrated Yes

Device location Built-in

Realtek ALC892 / ALC897 audio chipset

24-bit audio data quality

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio

Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8111H network card chipset

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols

Slots provided

PCI Express 3.0 x16 1

PCI Express 3.0 x1 1

Supported interfaces

PS / 2 1

HDMI 1 (HDMI (Type A))

LAN 1 (RJ-45)

USB 3.2 Gen 1 4 (USB 3.2 (type A))

USB 2.0 2 (USB 2.0 (type A))

Audio interface 3 (3.5 mm mini jack)

Desktop motherboard - Features

BIOS type AMI

BIOS features ASUS CrashFree BIOS 3

UEFA

PXE boot

ASUS EZ Flash 3

256 Mb Flash ROM

Wake on LAN

Power connector type 24 + 8 pin

Other features

Cables included 2 x SATA 6Gb / s Cables

I / O Shield accessories included

Screws

User Guide

Main Board Desktop - Dimensions & Weight

Form factor Micro ATX

Height 200 mm

Width 236 mm

Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number

Logistic information

Package weight - Gross (kg) 0.1 kg

Package weight - Net (kg) 0.1 kg

Number in package 1

Carton weight - Gross (kg) 0.1 kg

Retail Packaging Net Weight Carton 0.1 kg

Retail Packaging Net Weight Plastic 0.1 kg

Packages in cartons 1

Package type With packaging
