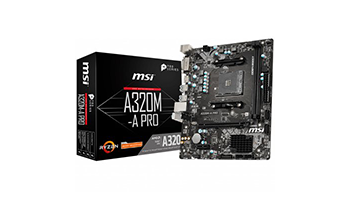

MSI A320M-A_PRO m-ATX



MSI A320M-A PRO,m-ATX,Socket AM4,AMD A320 Chipset,2 DIMMs,Dual Channel DDR4 up to 3200(OC)MHz,1x PCI-E 3.0 x16 slot,4x USB 3.2 Gen1,2x USB 2.0,1x HDMI,1x DVI-D,Gigabit LAN,7.1 HD Audio, 3y warranty



Main Board Desktop - Processor

AMD A320 motherboard chipset

AMD Athlon processor

AMD A series

AMD Ryzen Series

Socket AM4 processor socket

Max. number of installed processors 1



Main Board Desktop - Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Memory speed / frequency 1866MHz (PC4-14900)

2133MHz (PC4-17000)

2400MHz (PC4-19200)

2667MHz (PC4-21300)

2933MHz (PC4-23464)

3200MHz (PC4-25600)

Maximum amount of installed memory 32 GB

Total number of memory slots 2

Proposes an ECC / Non-ECC error checking method

Two DDR Channels memory features

Unbuffered



Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10

SATA III-600 (4)



Main Board Desktop - Audio Output

Audio integrated Yes

Device location Internal

Realtek ALC892 audio chipset

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio



Main Board Desktop - Networking Specifications

LAN integrated Yes

Realtek RTL8111H network card chipset

Supported Gigabit Ethernet / Fast Ethernet / Ethernet data exchange protocols



Slots provided

PCI Express 3.0 x16 1

PCI Express 2.0 x1 1



Supported interfaces

DVI 1 (DVI-D)

HDMI 1 (HDMI (Type A))

LAN 1 (RJ-45)

USB 3.1 Gen 2 4 (USB 3.1 (type A))

USB 2.0 2 (4-pin USB (type A))

Audio interface 3 (3.5 mm mini jack)

PS / 2 2



Desktop motherboard - Features

BIOS type AMI

BIOS Features PnP Support

128 Mb Flash ROM

Power connector type 24 + 8 pin

Other features

I / O Shield accessories included

Screws



Main Board Desktop - Dimensions & Weight

Form factor Micro ATX

Height 187 mm

Width 226 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 0.5 kg

Package weight - Net (kg) 0.5 kg

Number in package 1

Weight per carton - Gross (kg) 0.5 kg

Retail Packaging Net Weight Carton 0.5 kg

Retail Packaging Net Weight Plastic 0.5 kg

Packages in cartons 1

Package type With packaging

EAN code 4719072663889
