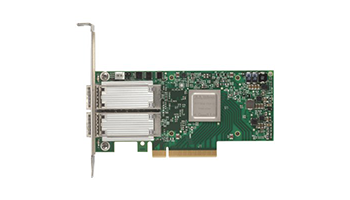

MELLANOX MCX512A-ACAT ConnectX-5 EN network interface card, 10/25 Gbe dual- port, SFP28, PCIe3.0 x8, tall bracket, ROHS R6
Network Card - Network Specifications
Type of network equipment Network card
LAN architecture Fiber Channel
SFP28 interface
PCI Express 3.0 x8 expansion slot required
Plug-in-card form factor
Number of ports 2
Supported data exchange protocols 10 Gigabit Ethernet, 25 Gigabit Ethernet
Compatibility with IEEE 1588v2 network standards
Network features Jumbo Frames Support
Certificates CB / cTUVus / CE / CE / FCC / VCCI / ICES / RCM / RoHS-R6
Network card - Rani
Box type package
Network card - Dimensions and weight
Depth 68.9 mm
Width 142.42 mm
Network card - Operating conditions
Max. operating ambient temperature 55 V ° C
Min. operating ambient temperature 0 V ° C
Max. ambient humidity 90%
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0.25 kg
Package weight - Net (kg) 0.15 kg
Number in package 1
Carton weight - Gross (kg) 0.25 kg
Retail Packaging Net Weight Carton 0.1 kg
Retail Packaging Net Weight Plastic 0.1 kg
Packages in cartons 1
