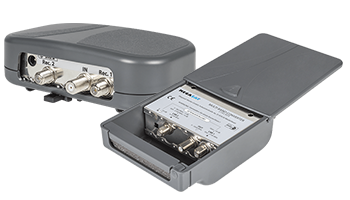

Single-cable converter for bundling two coaxial cables

The stacker bundles two different coaxial lines into one, the Destacker splits the coaxial cable return to two set-top box. This allows you to operate two set-top box (or a twin set-top box) with just one installed cable without having to lay a further cable.
With the integrated DiSEqC function, you can also transmit two different satellites, such as Astra and Hotbird, with only one coaxial cable. The system is suitable for coaxial cables of up to 50 meters.

Features Stacker (on LNB)

Inputs: 1x 5-2150 MHz / 1x 950-2150 MHz
Outputs: 1x 5-3550 MHz (with “F” High Quality)
Attenuation: Terrestrial -1 dB / Satellite -4 dB / Satellite converted +6 dB
Max. Input level: Pos. 1 (0 dB) = 88 dBμV / Pos. 2 (10 dB att.) = 98 dBμV
Power consumption: 0.7 Watt
Dimensions (W/H/D): 114 x 48 x 140 mm
Weight: 282 g (net)
Features Destacker (on set-top box)

Inputs: 1x 5-3550 MHz (with “F” High Quality)
Outputs: 1x 5-2150 MHz / 1x 950-2150 MHz
Attenuation: Terrestrial -1 dB / Satellite -4 dB / Satellite converted +4 dB
Max. Input level: 93 dBμV
Power consumption: 0.7 Watt
Dimensions (W / H / D): 140 x 44 x 90 mm
Weight: 269 g (net)
