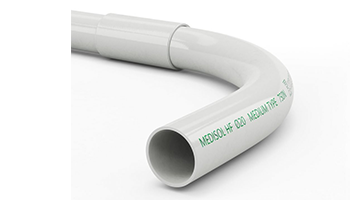

MEDISOL HF BEND Halogen Free & Low Smoke L-joint Ø32, MEDISOL HF BEND Ф32



Halogen Free & Low Smoke L-joint for corrugated and rigid pipes MEDIFLEX and MEDISOL, indoor / outdoor installation. Non-flammable, UV stabilized PC material with resistance to UV radiation over 10 g and without halogen elements and without release of toxic or corrosive gases in case of fire. Patented technology to reduce static electricity. Outer / Inner diameter 32 / 27.6mm; . Medium Type with mechanical resistance ≥750N / 5cm, impact bag. resistance: 2J (-25ºC). Color: gray (RAL 7035). Working temp: -25º ~ 120ºC. Degree of protection with CONDUR connection: IP65. Suitable for installation in outdoor conditions, concrete, plaster, indoor: open surface, suspended ceiling, double floor, underground. Dimensions Ø25: 36.7x36.7mm@R108mm; . VDE EN certificates: EN61386-1: 2008; EN61386-21: 2004 + A11: 2010.



Weight 0.012 Kgr
