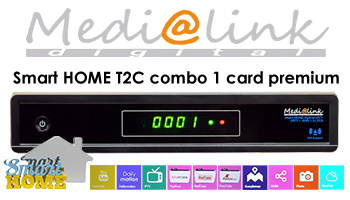

Medialink Smart Home 1x DVB-C 1x DVB-T2 IPTV Full HDTV Combo Receiver
Open IPTV setting working all M3U file for Pay TV system.
freeworking up to 3000 channels with 28 categories.
User IPTV setting via Web interface or USB
APPs:
- YouTube, Daily motion, GoogleMap. Weather, Internet Radio, DLNA, Web Album, Photo, Rss, gMail, etc.
CPU:
- High Performance 667MHz 32 bit MIPS 24KEc
MEMORY:
- FLASH 128Mbit
- DDR3 SDRAM 2 Gb

- NUMBER OF TUNERS 2

DVB-T2
Input Connector : IEC 169 -2, Female
Frequency Range : 147 ~ 230 MHz, 470 ~ 862 MHz
Signal Level Input : -80~ -20dBm
Aerial Supply : 5V, max. 100mA
Demodulation : OAM
Carrier Mode :  1K, 2K, 4K, 8K, 16K, 32K
Constellation : 16 and 64QAM
Guard Interval : 1/4, 1/8, 1/16 and 1/32


DVB-C
Input Connector  : F-type, IEC 169-24, Female
Frequency Range : 51 ~ 858 MHz
Symbol Rates : 0.87m ~ 9M baud
Sensitivity : -47dBm (64 QAM ~ 256 QAM)

VIDEO DECODER:
- TRANSPORT STREAM MPEG-2 ISO/IEC 13818-2MPEG-4 Part 2
- PROFILE LEVEL MPEG-2 MP@ML, MPEG-2 MP@HL MPEG-4 AVC/H.264 HP@L4.1
- VIDEO FORMAT 4:3, 16:9, Letter Box
- VIDEO RESOLUTION1080p, 1080i, 720p, 576p, 576i, 480p, 480i
AUDIO DECODER:
- AUDIO DECODING MPEG/MusiCam Layer I & II, AC3 Down Mix
- AUDIO MODE Mono / Dual / Joint Stereo / Stereo
- AUDIO BIT RATE 32Kbits/s ? 384Kbits/s
AUDIO / VIDEO / DATA INPUT/OUTPUT:
- VIDEO OUTPUT 1 x RCA Cinch
- AUDIO OUTPUT 2 x RCA Cinch (L/R)
- DIGITAL AUDIO OUTPUT 1 x S/PDIF Cinch
- RS-232C 9 Pin D-Sub Socket Type (Max.115200bps)
- HDMI 1 x HDMI 1.3
- USB 2 x (USB 2.0 Host), Front & Rear
- ETHERNET 1 x RJ45 Port 10/100
CONDITIONAL ACCESS SYSTEM:
SMART CARD READER 1 Smart Card Slot
POWER SUPPLY:
- TYPE SMPS, AC IN 110~240V 50/60Hz 20W max
- PROTECTION Separate internal fuse The input should be protected against lighting.
PHYSICAL CHARACTERISTICS:
- DIMENSION (W x H x D) 220 x 40x135(mm)
- NET WEIGHT Approx. 1.1Kg
- OPERATING TEMPERATURE 0°C to +45°C
- STORAGE TEMPERATURE -10°Cto +70°C
