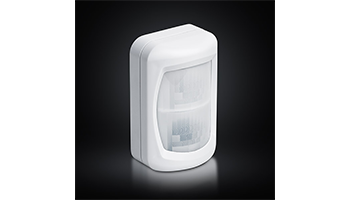

MAXIMUS 3D ANTI-MASK Anti-masking Double Sensor PIR Detector
3D (three dimensional) thermal imaging, by synchronized double sensors.
Masking protected, by active infrared beams.
Selectable PIR detection sensitivity.
Selectable Masking detection sensitivity.
Two LED indicators: Red = Movement detection, Green = Masking detection.
Wide-angle (140°) filed-of-view.
Auto temperature compensation.
Auto overall self-test.
Automatic adaptation to background noise.
Extremely reliable & highly immune to false alarms.
A/D signal analyzer.
Powerful microprocessor controlled.
SPC – Smart Processing Controller.
High level of RFI/EMI immunity.
Wall, ceiling or corner mounting.
INTRODUCTION
3-D ANTI-MASK consists of two synchronized sensors in order to provide higher level of movement detection plus further immunity to false alarms.
By means of the two synchronized sensors it creates three-dimensional imaging of the protected area.
The received analog signals from each sensor are converted to digital signals and processed by a powerful microprocessor.
3-D ANTI-MASK ensures excellent protection against an attempt to disable its operation by blocking (masking) its near field-of-view, whether the alarm system is Armed or Disarmed.
The protection against masking achieved by a continuous scan of infrared beams.
