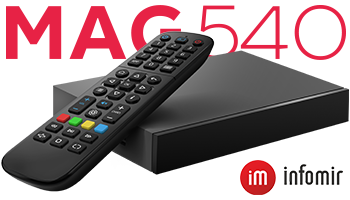

MAG540
High-performance 4K STBs with a brand new
ARM Cortex-A35 CPU

 MAG540 are Linux STBs powered by the quad-core ARM Cortex-A35 CPU with a brand new Amlogic S905Y4 chipset.
 This hardware makes the model much more powerful than the legacy STBs.
 The devices ensure easy and smooth playback of content in all popular modern video formats, including 4K.

With MAG540/540w3, operators can offer reliable service to their subscribers.
The interface continuity makes the model easy to integrate into projects that previously used MAG set-top boxes. Infomir can integrate set-top boxes with CAS/DRM and middleware at the operator’s request.

Specifications

Audio & video

Video modes    PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Audio codecs    MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Video codecs    MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Video containers    TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats    JPEG, PNG, BMP, RAW
Subtitles    DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions
Playlist formats    M3U, M3U8, PLS, CUE

Hardware

Chipset    Amlogic S905Y4-B
Performance    16 500 DMIPS
Processor    Quad-core ARM Cortex-A35, 2,000 MHz
RAM    1 GB LPDDR4
Flash memory    4 GB eMMC

Firmware and CAS/DRM

Operating system    Linux 4.9
CAS/DRM    Upon request
Middleware supported    Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available.

Interfaces

Digital ports    HDMI 2.1
Ethernet    100 Mbps
USB    USB 2.0 × 2
Wi-Fi    Built-in 2T2R ac (MAG540w3 only)

Power input

Power adapter    DC 5V, 2A (DC 12V, 1А optional)

Dimensions

W/D/H    120 × 78 × 21 mm
