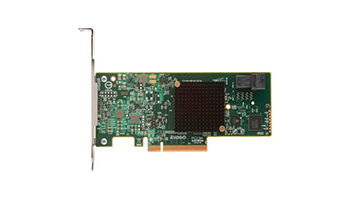

LSI LOGIC 05-26105-00 LSI MegaRAID SAS 9341-4i SGL, 12Gb/s, SAS/SATA 4-port int., RAID 0/1/10/5/50, (LSI00419) (Original by Broadcom)
Controller (RAID) - Controller
Controller - Plug-in Card form factor
PCI Express 3.0 x8 expansion slot required
Offers data channel (old) SAS / SATA III
Data transfer rate 12 Gbps
Number of input-output channels 4
Supports 64 devices
Supported RAID level JBOD
Level 0
Level 1
Level 10
Level 5
Level 50
Supported interfaces
Mini SAS HD 1 (SFF-8643)
Controller (RAID) - Operating conditions
Max. operating ambient temperature 70 ° C
Min. operating ambient temperature 0 ° C
Max. ambient humidity 90%
Min. operating humidity 5%
Max. ambient temperature in the off mode 105 ° C
Min. non-operating ambient temperature -45 ° C
Max. humidity in off mode 90%
Min. humidity in idle mode 5%
Controller (RAID) - Miscellaneous
Low Profile Bracket accessories included
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0.1 kg
Package weight - Net (kg) 0.1 kg
Number in package 1
