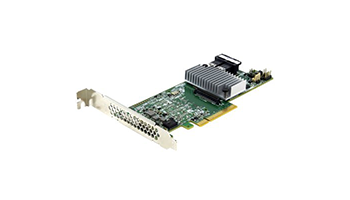

LSI LOGIC 05-25420-08 MegaRAID SAS 9361-8i, 12Gb/s, SAS/SATA 8-port int, RAID 0/1/5/6/10/50/60, Cache 1Gb DDR3 (LSI00417) (Original by Broadcom)
Controller (RAID) - Processor
LSI Logic SAS3108 processor
Controller (RAID) - Memory
DDR3 SDRAM memory technology
1 GB cache capacity installed
Memory speed / frequency 1866MHz (PC3-14900)
Controller (RAID) - Controller
Controller - Plug-in Card form factor
PCI Express 3.0 x8 expansion slot required
Offers the dimensions of the socket of the indoor unit Low Profile
Offers data channel (old) SAS / SATA
Data transfer rate 12 Gbps
Number of input-output channels 8
Supports 128 devices
Supported RAID level Level 0
Level 1
Level 10
Level 5
Level 50
Level 6
Level 60
Controller - characteristics of Online Capacity Expansion
Online RAID Level Migration
S.M.A.R.T. Support
Auto-resume on rebuild
Auto-resume on reconstruction
Configurable Stripe Size
Supported interfaces
Mini SAS 2 (SFF-8643)
Controller (RAID) - Operating conditions
Max. operating ambient temperature 55 ° C
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 0.1 kg
Number in package 1
