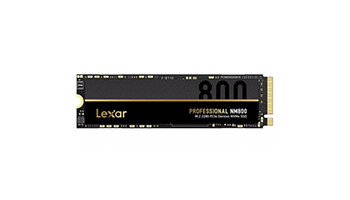

LEXAR LNM800X512G-RNNNG NM800 512GB M.2 SSD



LEXAR NM800 512GB High Speed PCIe Gen 4 with 4 Lanes M.2 NVMe, up to 7000 MB/s read and 3000 MB/s write



Disk configuration

Location of the Plug-in Module device

Form factor M.2

Data storage device capacity 512 GB

PCI Express 4.0 x4 data channel supported

NAND Flash memory technology

Triple-Level Cell flash memory technology

Exterior color Black

Productivity

Maximum Random Read Rate 550000 IOPS

Maximum Random Write Rate 200000 IOPS

Maximum Sequential Read Rate 7000 MB/s

Maximum Sequential Write Rate 3000 MB/s

Total Bytes Written (TBW) 250 TB

Drive Writes Per Day (DWPD) 0.44

Reliability

Average time between failures 1500000 hr

Solid State Drive Features Advanced LDPC ECC Engine

Shock resistance when working 1500G @ 0.5ms

Operating vibration tolerance 20G @10-2000Hz

Terms of use

Max. operating ambient temperature 70 °C

Min. operating ambient temperature 0 °C

Max. ambient temperature in off mode 85 °C

Min. non-operating ambient temperature -40 °C

Dimensions and weight

Width 22 mm

Height 2.45 mm

Depth 80 mm

Nominal weight 0.009 kg

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 0.01 kg

Package Weight - Net (kg) 0.01 kg

Quantity per pack 1

Carton weight - Gross (kg) 0.01 kg

Retail Packaging Net Weight Carton 0.01 kg

Retail Packaging Net Weight Plastic 0.01 kg

Packages in Carton 1

Package type With packaging
