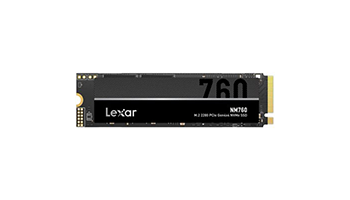

LEXAR LNM760X001T-RNNNG NM760 1TB M.2 SSD
LEXAR NM760 1TB High Speed PCIe Gen 4x4, M.2 NVMe, up to 5300 MB/s read and 4500 MB/s write
Disk configuration
Device Location Internal
Form factor M.2 (2280)
1 TB storage device capacity
PCIe NVMe 4.0 x4 data channel supported
3D NAND memory technology
Triple-Level Cell flash memory technology
Exterior color Black
Productivity
Maximum Sequential Read Rate 5300 MB/s
Maximum Sequential Write Rate 4500 MB/s
Total Bytes Written (TBW) 1000 TB
Reliability
Mean time between failures 1500000 hrs.
Storage shock resistance 1500G @ 0.5ms
Storage vibration tolerance 20G @ 10-2000Hz
Terms of use
Maximum ambient temperature 70 °C
Minimum ambient temperature 0 °C
Max. ambient temperature in off mode 85 °C
Min. non-operating ambient temperature -40 °C
Dimensions and weight
Width 80 mm
Height 2.45 mm
Depth 22 mm
Nominal weight 9 g
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 0.01 kg
Package Weight - Net (kg) 0.01 kg
Quantity per pack 1
Carton weight - Gross (kg) 0.01 kg
Retail Packaging Net Weight Carton 0.01 kg
Retail Packaging Net Weight Plastic 0.01 kg
Packages in Carton 1
Package type With packaging
