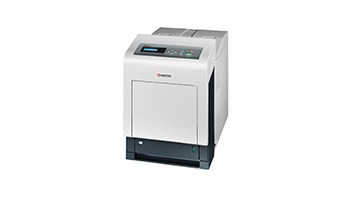

Kyocera Printer P6030cdn, colour, A4 format KM-P6030CDN



Supplier Number



1102PP3NL0



Description



The compact ECOSYS P6030cdn combines speed and excellent colour quality with intelligent network and security features.

Highly productive and very economical, the compact ECOSYS P6030cdn combines speed and excellent colour quality with intelligent network and security features. This highly efficient combination of features fulfils the demands of busy offices and work groups. And thanks to the cost-effective ECOSYS technology with its long-life components, this device offers low running costs and less impact on the environment.



Features





GENERAL



Technology: KYOCERA ECOSYS, Colour Laser Control Panel Display: 2 Line LCD back light display

Engine speed: Up to 30 pages per minute in A4 in colour and black and white

Resolution: 600 x 600 dpi

Multibit technology for print quality of up to 9,600 x 600 dpi

Duty cycle:

Maximum. 100,000 pages per month

Maximum average. 12,000 pages per month

Average. 3,000 pages per month

Warm-up time: Approx. 36 seconds or less from power on

Time to first page: Approx. 8.5 seconds or less in black and white

Approx. 10 seconds or less in colour

Integrated accounting: 100 department codes Dimensions (W x D x H): Main unit:

345 mm x 518 mm x 480 mm

Weight: Main unit: approx. 29.5 kg

Power source: AC 220 ~ 240 V, 50/60 Hz

Power consumption: Printing: 529 W Ready mode: 76 W

Low-Power mode: 24 W Sleep-mode: 4 W

Noise (Sound pressure level: ISO 7779/ISO 9296):

Printing in colour: 52,5 dB(A) LpA Ready mode: 34,4 dB(A) LpA Sleep mode: Immeasurably low

Safety standards: GS, TÜV, CE

This unit is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.



PAPER HANDLING



All paper capacities quoted are based on a paper thick- ness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.

Input capacity: 150-sheet multi-purpose tray; 60 – 220 g/m2; A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 138 mm –

216 x 356 mm) 500-sheet universal cassette; 60 – 120 g/m2; A4, A5, A6, B5, B6, Letter, Legal, Custom (105 x 148 –

216 x 356 mm). Max. paper capacity incl. options:

2,150 sheets

Duplex functionality as standard: Double-sided printing: 60 – 120 g/m2; A4, A5, B5, Letter, Legal

Output capacity: 250 sheets face-down with paper full sensor



CONTROLLER



CPU: Power PC 465S/667MHz

Memory: Standard: 512 MB RAM, max. 1,536 MB RAM

Standard interface: USB 2.0 (Hi-Speed), USB Host Interface, Gigabit Ethernet (10BaseT/100BaseTX/1000BaseT)

Slot for optional internal print server or SSD hard disc

Slot for optional SD/SDHC-Card

Controller language: PRESCRIBE IIc Emulations: PCL 6 (5c, XL), KPDL 3 (PostScript 3

compatible), XPS Direct Print, PDF Direct Print 1.7, with automatic emulation sensing

Operating systems: All current Windows operating systems, Mac OS X Version 10.4 or higher, UNIX, LINUX as well as other operating systems on request

Fonts/barcodes: 93 scalable fonts for PCL/PostScript,

8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)

Print features: AirPrint, IPP printing, Email printing, Secure printing via SSL, IPSec, HTTPS, SNMPv3, IPPS, POP over SSL, SMTP over SSL, Private Print, Toner save mode



CONSUMABLES



Average continuous toner yield in accordance with ISO/IEC 19798

Toner-Kit TK-560C, TK-560M, TK-560Y: cyan, magenta, yellow toner yield 10,000 pages A4

Starter toner: cyan, magenta, yellow toner yield 5,000

pages A4

Toner-Kit TK-560K: black toner yield 12,000 pages A4 Starter toner: black toner yield 6,000 pages A4



OPTIONS



PF-500 Paper feeder: 500 sheets; 60 – 120 g/m2; A4, A5, B5, Letter, Legal, Custom (148 x 210 mm – 216 x 356 mm)

PF-510 Paper feeder: 500 sheets; 60 – 220 g/m2; A4, A5, B5, Letter, Legal, Custom (148 x 210 mm – 216 x 356 mm)

CB-500 Cabinet: Wooden desk with storage capacity. Approx. 38.5 cm x 50 cm x 58 cm (WxHxD)

Memory upgrade: MDDR3-1GB: 1.024 MB

HD-6 SSD hard disc: 32 GB for easy document management HD-7 SSD hard disc: 128 GB for easy document management

Optional interfaces:

IB-50 Gigabit Ethernet: 10BaseT/100BaseTX/ 1000BaseT (RJ-45)

IB-51 Wireless LAN: 802.11b/g/n
