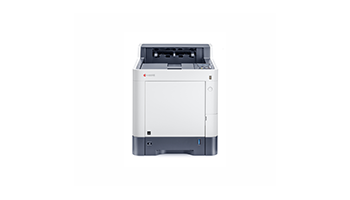

Kyocera Printer  P6235cdn, colour, A4 format KM-P6235CDN



Supplier Number



1102TW2US1



Description



This new A4 colour device is designed specifically for medium and large-sized work groups. This versatile colour printing solution contains our renowned long-life components, which help to reduce waste and ensure exceptional levels of reliability. It complies now with the newest environmental standards for the future. With up to five paper sources, the printer allows for different media sizes and weights, up to 220g/m2. Ideal Colour Printer for every situation within your business scope and takes your running costs to an even better level while increasing further your productivity.



Features





GENERAL



Technology: KYOCERA ECOSYS, Laser, Colour

Operation panel: 5Line display with back light and numeric keypad

Type: Desktop

Engine speed: Up to 35 pages A4 per minute

Duplex print speed: 32 page per minute, A4

Resolution: 1200 x 1200 dpi (print, at reduced speed) Warm-up time: Approx. 25 seconds or less

Time to first print: Approx. 6.5/7.5 seconds or less in

b/w / colour

CPU: ARM Cortex-A9 Dual core 1.2GHz + ARM Cortex-M3 100MHz

Memory: Standard 1GB, Max. 3GB + 128GB SSD

Standard interface: USB 2.0 (Hi-Speed), 2 x USB Host Interface, Gigabit Ethernet (10BaseT/100BaseTX/ 1000BaseT, IPv6, IPv4, IPSec, 802.3az support), optional Wi-Fi (IEEE 802.11b/g/n), 1 eKUIO slot for optional internal print server, Slot for optional SD Card

Integrated accounting: 100 department codes Dimensions (W x D x H): 390 x 532 x 469.5 mm

Weight: Approx. 29.5 kg

Power source: AC 220 ~ 240 V, 50/60 Hz

Power consumption

Printing: 523 W

Low power mode: -- W

Ready mode: 74 W

Sleep-mode: 0.6 W

Noise (sound pressure level: ISO 7779/ISO 9296) Printing: 51.6 dB (A)

Stand-by: 30 dB (A)

Safety standards: TÜV/GS, CE

This unit is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.



PAPER HANDLING



All paper capacities quoted are based on paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.

Input capacity:

100-sheet multi-purpose tray, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 500-sheet Standard universal paper cassette, 60–163 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm). Max. input capacity with options: 2,100 sheets A4

Capacity of starter toner is black 6,000 pages, cyan, magenta, yellow 5,000 pages A4

Duplex unit: Duplex as standard supports 60–163 g/m2, A4, A5, B5, Letter, Legal

Output capacity: Max. 500 sheets face-down with paper full sensor





CONSUMABLES



Average continuous toner yield in accordance ISO/IEC 19798 TK-5280K Toner Kit: Micro fine black for 13,000 pages A4 TK-5280C, TK-5280M, TK-5280Y Toner Kits: Micro fine toner cyan, magenta, yellow for 11,000 pages A4.



OPTIONS



Paper handling

PF-5100 Paper feeder (max 3 units): 500 sheets, 60–220 g/m2, A4, A5, B5, Letter, Legal, Custom (92 x 162 mm to 216 x 356 mm)

HD-6 SSD: 32 GB for easy document management

HD-7 SSD: 128 GB for easy document management

Data Security Kit (E): In line with ISO 15408

(Common Criteria) with security level EAL2

*HD-6, HD-7 or SD-card is needed.

Memory upgrade: 512MB/1GB/2GB

UG-33: ThinPrint support

USB IC Card Reader + Card Authentication Kit (B): Support for various authentication keys available. Optional interface:

IB-36: WLAN and Wi-Fi Direct Interface

IB-50: Gigabit-Ethernet board 10 BaseT/100 BaseTX/ 1,000 BaseT

IB-51: Wireless LAN Interface (802.11b/g/n)

CB-5100H Cabinet High: Wooden desk with storage capacity. Approx. 39 cm x 53 cm x 50 cm (WxDxH) CB-5100L Cabinet Low: Wooden desk with storage capacity. Approx. 39 cm x 53 cm x 37 cm (WxDxH)
