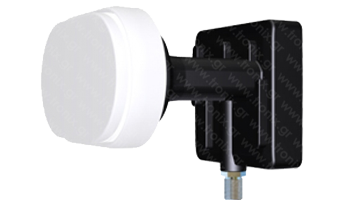

Specifically designed for the European DTH markets, this Monoblock LNB allows for dual satellite reception. It can be used for satellite broadcast reception (on an 80cm dish antenna) of any two satellites spaced with 3° . It enables its distribution to a Set Top Box with Single Tuner. The LNB is optimized for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception across Europe.


Main Features

    Low Phase Noise, DVB-S2 (HDTV) compliant
    Low Noise Figure (0.2 dB)
    Low Power Consumption
    Very high Cross Polarization Isolation
    Very high Frequency Stability

Technical specifications
Low band input frequency range     10.7 GHz ~ 11.7 GHz
Low band output frequency range     950 MHz ~ 1950 MHz
Low band LO frequency     9.75 GHz
High band input frequency range     11.7 GHz ~ 12.75 GHz
High band output frequency range     1100 MHz ~ 2150 MHz
High band LO frequency     10.6 GHz
Noise figure     0.2 dB typ. (0.7 dB max.)
LO temperature drift     ±3.0 MHz Max.
LO initial accuracy     ±1.0 MHz Max.
LO phase noise @ 10 kHz     -90 dBc / Hz max.
Conversion gain     50 dB ~ 65 dB
Gain ripple (over 26 MHz bandwidth)     ±0.75 dB
Gain variation (over full band)     ±4 dB max.
Image rejection     40 dB min.
1 dB compression point (@ output)     0.0 dBm min.
Control, Satellite A/B/C/D Selection     DiSEqC 1.0 (Sat A* = East Satellite Position, Sat B = West Satellite Position)
* Default Satellite Reception
Cross polarization isolation     22 dB min.
Output VSWR     2.5 : 1
In band spurious level     -60 dBm max.
Current consumption     120 mA max. @ 11 V ~ 20 V
Operating temperature     -30 °C  ~  +60 °C
Output impedance     75 Ω
Output connector type     F-Type (female)
Recommended Dish Size     75-85 cm (F/D = 0.6)
