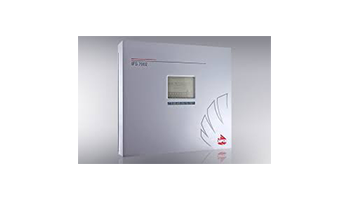

Interfire IFS7002-2 Addressable fire alarm control panel with 2 loops. Up to 125 devices in a loop (max 200mA). Supports 250 zones with 60 per zone



Addressable fire alarm control panel with 2 loops. Up to 125 devices in a loop (max 200mA). Supports 250 zones with 60 per zone. Built-in LCD touch display 320x240, LED and sound indication. Monitoring the status of lines and outputs. Programmable time intervals. Different test modes. Non-volatile memory, 1023 events. Possibility of configuration from the built-in touch display or software. Different levels of access. Supports loop branches. Manual/Automatic Addressing. Interfaces: 2x siren output DC24V/500mA with status monitoring, 2x fire relay outputs NO/NC AC125V/3A, DC30V/3A. 1x relay output NO/NC "Fault" AC125V/3A. Total consumption for executive units 1A (Sirens, AUX). 2x CAN2.0, 1x USB for control/configuration. Compatible batteries 2x 18Ah/12V. Power supply: AC220~230V. Metal housing with dimensions: 480x445x100mm/7.1kg, degree of protection IP40. EN Standards: БДС EN 54-2:1997 /A1:2006 /AC: 2009, EN54- 4:1997/A2:2006/AC:2009.
