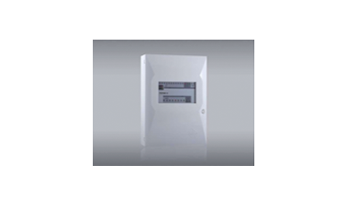

Interfire FD7203O Addressable IO module with 10x programmable inputs (galvanically separated), 16x outputs. Built-in isolator



Addressable IO module with 10x programmable inputs (galvanically separated), 16x outputs. Built-in isolator. External power supply. 2x programmable inputs with status monitor, 8x programmable inputs. 11x OC programmable outputs DC30V/35mA, 2x OC programmable outputs with status monitoring DC30V/150mA, 3x programmable relay outputs NO/NC AC125V/0.5A, DC30V/1A. LED indication. Operating voltage DC12~30V, standby current 35mA. Maximum cable cross-section 2.5mm2. Operating temperature: 5o~40oC. Dimensions: 313x218x85mm. EN standards: EN54-17, EN54-18.
