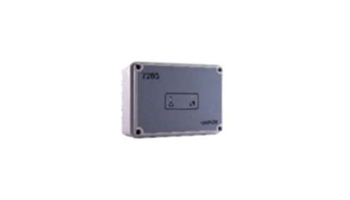

Interfire 7203 Addressable IO module with 3x inputs (galvanically separated), 6x outputs. Built-in isolator



Addressable IO module with 3x inputs (galvanically separated), 6x outputs. Built-in isolator. External power supply. 1x output DC11-30V/200mA with status monitoring, 1x output DC11-30V/1A, 4x relay outputs NO/NC AC125V/0.5A, DC30V/1A. Operating voltage DC12~30V, standby current 300μA. Maximum cable cross-section 2.5mm2. Operating temperature: -10o~55oC. Degree of protection IP50. Dimensions: 120x164x74mm. EN standards: EN54-17, EN54-18.
