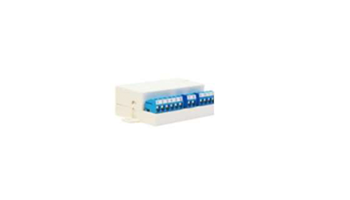

Interfire 7201S Addressable module with built-in isolator and zone monitor/adapter for conventional line with up to 32 detectors



Addressable module with built-in isolator and zone monitor/adapter for conventional line with up to 32 detectors. LED indication. External power supply. Operating voltage DC15~30V, standby current 13mA. Maximum cable cross-section 1.5mm2. Operating temperature: -10o~55oC. Degree of protection IP50. Dimensions: 92x50x26mm. EN standards: EN54-17, EN54-18.
