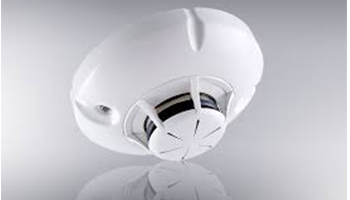

Interfire 7160 Addressable combined optical-smoke, thermal and thermo-differential detector with microprocessor control and adjustable sensitivity and operating mode, self-compensation algorithm



Addressable combined optical-smoke, thermal and thermo-differential detector with microprocessor control and adjustable sensitivity and operating mode, self-compensation algorithm. Adjustable operating temperature A1S/A2S/BS. Protected area: circle with a diameter of 10m (EN54-14). Maximum installation height 10m (EN54-14). 2 LED indicators, parallel indicator output 2.1mA/24VDC, material ABS, color white. Operating voltage DC15~32V, standby current 310μA. Maximum cable cross-section 2.5mm2. Operating temperature: -10o~55oC. Size with base f100x52mm. EN standards: EN54-7 : 2000+A1:2002. EN54-5: 2000, EN54-14
