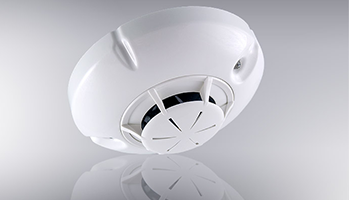

Interfire 7130 Addressable optical smoke detector with microprocessor control and adjustable sensitivity, self-compensation algorithm



Addressable optical smoke detector with microprocessor control and adjustable sensitivity, self-compensation algorithm. Built-in isolator and lock. Protected area: circle with a diameter of 15m (EN54-14). Maximum installation height 11m (EN54-14). 2 LED indicators, parallel indicator output 2.1mA/24VDC, material ABS, color white. Operating voltage DC15~32V, standby current 310μA. Maximum cable cross-section 2.5mm2. Operating temperature: -10o~55oC. Size with base f100x47mm. EN standards: EN54-7 : 2000+A1:2002, EN54-14
