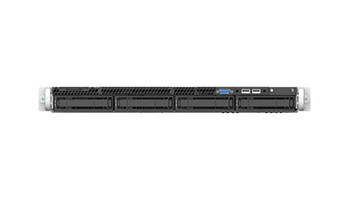

INTEL LWF1304YR80860H L9 System based on R1304WFTYSR, 1 x Intel Xeon Silver 4208 Processor



Intel L9 System based on R1304WFTYSR, 1 x Intel Xeon Silver 4208 Processor, 4 x 16GB DDR4 RDIMM, RMS3CC040 RAID Module w/backup AXXRMFBU5, AXXRMM4LITE2 Management Card, (1+1) 1100W Red. PSU



The system

Server system type

Rack-Mountable system form factor

Processor

Xeon Scalable Processors supported

Intel Xeon Processor 4208 Processor

2.1 GHz internal clock frequency (up to 3.2 GHz)

Number of CPU cores 8

Threads Quantity 16

Socket 3647 processor socket

Number of processors installed 1

Max. number of installed processors 2

CPU Cache Size 11 MB

Intel C624 motherboard chipset

Characteristics Supports 14 nm Processors

Number of supported motherboards 1



Memory

DDR4 SDRAM memory type

Memory factor form DIMM 288-pin

Proposes an ECC error checking method

Amount of installed system memory 64 GB

Maximum amount of installed memory 7.5 TB

Total number of memory slots 24

Memory features Registered



Controller

Plug-in-card Remote Management Controller:

Intel Remote Management Module 4 Lite 2 Gigabit Ethernet (RJ-45)

RAID Controller:

Intel RMS3CC040

Supports: Level 0, Level 1, Level 10, Level 5, Level 50, Level 6, Level 60

SAS / SATA (4)

Built-in Storage Controller:

2 x M.2

Storage Controller:

Supports: Level 0, Level 1, Level 10

SATA (10)



Video output

Video controller - form factor Built-in



Network specifications

Network device form factor Built-in

LAN 10G Ethernet

Supported protocols for data exchange 10 Gbps



Nests provided

Number of 3.5-inch / 2.5-inch Internal Drive Bays 4

M.2 Quantity Slot 2



Slots provided

Max Number of PCI Express Lanes 48

PCI Express 3.0 x24 1

PCI Express 3.0 x16 2

PCIe OCuLink Connectors (NVMe support) 4

Connector for Intel Integrated RAID Module 1



Supported interfaces

USB 5 (4 pin USB (type A))

Serial 2

LAN 2 (RJ-45)



Power

Power supply type - redundant

Power supply location Internal

Number of installed power supplies 2; Redundant (1 + 1)

Max. number of supported power supplies 2

Maximum output power 1100 W



Other features

Types of Rackmount mounting

Standard cabinet height 1 U



Dimensions and weight

Height 43.7 mm

Depth 709.9 mm

Width 430 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 23.1 kg

Package weight - Net (kg) 23.1 kg
