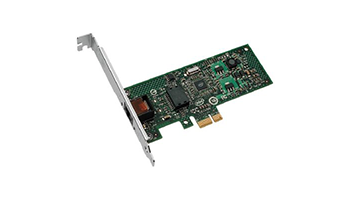

INTEL EXPI9301CTBLK Gigabit CT Desktop Adapter, 1GB CT port, Ethernet, 10/100/1000Base-T, PCI-E v1.1x2.5 (Low Profile and Full Height brackets included)



Network Card - Network Specifications

Type of network equipment Network card

LAN architecture 10Base-T / 100Base-TX / 1000Base-T

Ethernet interface

PCI Express x1 expansion slot required

Plug-in-card form factor

Number of ports 1

Intel 82574L network card chipset

Status indicator Connection status

Full Duplex data transmission

Compatibility with IEEE 802.3p, IEEE 802.3z network standards

ACPI Support Network Features

DMI 2.0 Support

PXE 2.0 Support

Wake on LAN

WFM 2.0 Support

WMI Support

Certificates FCC B, UL, CE, VCCI, BSMI, CTICK, MIC



Network Card - Interfaces

Network 10Base-T / 100Base-TX / 1000Base-T Number of ports 1

Network 10Base-T / 100Base-TX / 1000Base-T type port connector RJ-45



Network Card - System Requirements

Required operating system Microsoft Windows Server 2008, Linux 2.6.0 or Later, Microsoft Windows 2000, Microsoft Windows Server 2003, Microsoft Windows XP, Microsoft Windows Vista



Network card - Dimensions and weight

Depth 119.2 mm

Height 120 mm

Width 55.3 mm



Network card - Operating conditions

Max. operating ambient temperature 55 ° C

Min. operating ambient temperature 0 ° C



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package weight - Gross (kg) 0.1 kg

Package weight - Net (kg) 0.08 kg

Number in package 1

Carton weight - Gross (kg) 2 kg

Packages in cartons 20
