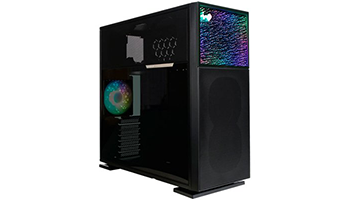

IN WIN INWIN_N515 Case



Chassis In Win N515, Tempered Glass, Steel Frame, ARGB Nebula Panel, InWin Luna AL120 ARGB PWM fan, GPU Anti-Sag Support, E-ATX/ATX/mATX/mITX, VGA Card Length: 385mm, CPU Heatsink Height: 160mm,1xUSB 3.2 Gen2x2 Type-C, 2xUSB 3.2 Gen1, HD Audio



System

Box/Cabinet form factor Midi Tower

Motherboard - form factor Extended ATX

Number of motherboards supported 1

Built-in Power Button devices

Supported Mainboard Form Factor ATX

Extended ATX

Micro ATX

Mini ATX

Slots provided

Number of 3.5-inch / 2.5-inch Internal Drive Bays 2

Number of internal slots for 2.5-inch drives 2

Slots provided

Number of expansion slots 7

system fans

Max. number of fans supported 9 count

Fans-number 1 x 120mm

Supported interfaces

USB 3.2 Gen 2 x2 1 (USB 3.2 (type C))

USB 3.2 Gen 1 2 (USB 3.2 (type A))

Audio interface 2 (3.5 mm mini jack)

Power

Power supply type Power supply module

Power Location Internal

Max. number of supported power supplies 1

Other features

CPU Cooler Maximum Height 160 mm

Expansion Card Max Length 385 mm

Chassis Features Supports Liquid Cooling System

With Window

RGB Fans

Case material Metal

Tempered glass

ABS plastic

Exterior color Black

Dimensions & weight

Depth 515 mm

Height 502 mm

Width 225 mm

Nominal weight 11.65 kg

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 13.73 kg

Package Weight - Net (kg) 11.65 kg

Quantity per pack 1

Carton weight - Gross (kg) 13.73 kg

Retail Packaging Net Weight Carton 2 kg

Retail Packaging Net Weight Plastic 2 kg

Packages in Carton 1
