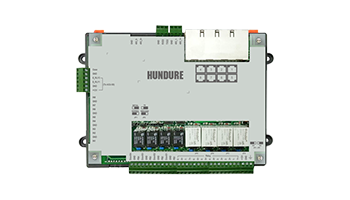

Hundure Access Control RAC-4600N

Supports to connect T2/Wiegand readers x 8 or RS-485 readers x 8 for door control.

Supports 2 ~ 4 door interlock function.

Provides 2 relay outputs each door for electronic lock and alarm.

Anti-passback and Duress card/code setting. When door opened in an emergency, controller will send signal to control center at the same time for tracing and rescue.

Features

Supports to connect T2/Wiegand readers x 8 or RS-485 readers x 8 for door control.
Supports standard Wiegand 26-bit format and expandable up to Wiegand 72-bit format.
Supports 2 ~ 4 door interlock function.
Provides 2 relay outputs each door for electronic lock and alarm.
Supports various alarm-linkage functions, like door left open alarm, door forced open alarm, controller tamper-proof alarm
Provides 2,000 hardware events.
Provides 256 time zones & time schedules ;Supports to set 8 time zones each day.
Provides 8 conditional unlock time schedules per day for a more flexible management.
Supports this year and next year holiday settings; 100 holiday settings per year.
Entry modes: By card-swipe or By card-swipe with password
Supports card number with English alphabets, max.14 characters.
Allows to set First-Card rule to the conditional unlock time schedules.
Allows to open door by any card before download authorizations (Default). Operator can disable this function and set not to open.
Blacklist function to increase the safety of Access Control.
Anti-passback and Duress card/code setting. When door opened in an emergency, controller will send signal to control center at the same time for tracing and rescue.
Built-in TCP / IP communication interface to PC.
Able remote open or close door by software.
0.280 Kgr

Model No.	RAC-4600N
Input Ports	9 sensors (Exit Button x 4、Door Sensor x 4、 Case Sensor x 1、 Option input port × 8)
Output Ports	8 Relays ( Door Lock × 4、Alarm × 4 )
Cardholders	40,000
Swipe Card Record	100000
LED Display	Power / Relay Output Status / Comm.
Real Time Clock	Yes
IP Setting	IP tool setting
Reader Port	T2 / Wiegand × 8 ( RJ-45 Ports)、RS-485 × 1
Power Input	DC 12V / 1A (excluding slave reader)
Current Consumption	700mA (max. excluding slave reader)
Comm. Interface	TCP/IP
Comm. Baudrate	10/100 Mbps
Operating Temp.	-40˚C ~ 70˚C / -40˚F ~ 158˚F
Relative Humidity	20% ~ 80%(Non-condensing)
Dimension	150mm(L) x 210mm(W) x 40mm(H)
