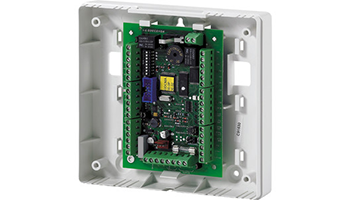

Honeywell C080 DCM Access control module Galaxy



Access control module compatible with GALAXY DIMENSION panels. Control of two doors on one side or one door on both sides. 1x RS485. 2x inputs for Wiegand readers. 2x inputs for Exit button. 2x NO / NC relay door outputs (AC30V / 1A). Outputs for control of light and sound signaling of the readers. 1x input for additional tamper. 2x inputs for MUK / Tamper on the door. Possibility for OFF Line work. Schedule. PVC box with tamper key and dimensions: 150x162x39mm. Power supply: DC12V / 130mA. Certificates: EN50131-1: EN50133-1; PD6662, Security Grade 3.



Weight 0.097 Kgr
