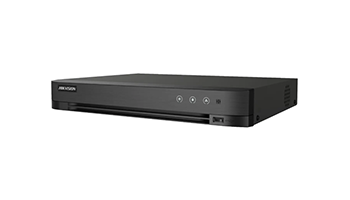

HIKVISION iDS-7204HUHI-M1/P(C)/A 4-channel pentabrid HD-TVI/AHD/CVI/CVBS/IP digital recorder



4-channel pentabrid HD-TVI/AHD/CVI/CVBS/IP digital recorder; supports

4 HD-TVI/AHD/CVI, analog or IP cameras in any combination + 4 IP cameras (up to 8.0Mpx) in "Enhanced IP mode" and off VCA algorithm for int. functions; built-in Deep Learning algorithm for classification of objects (people/vehicles) and precise detection of up to 4 cameras; audio transmission over the coaxial cable (4-channel audio recording); compression H.265+/H.265/H.264+/ H.264; resolution up to 5 megapixels (2592x1944) for TVI/up to 1080p for AHD/CVI; recording speed (total): 48 fps@5MP, 72 fps@3MP, 100 fps@1080p/720p/960H/D1 (real-time); up to 1 SATA HDD (up to 10TB/disk); 4 audio inputs/1 output; 4 alarm inputs/1 output; Instant Playback/Smart Search functions; analytical functions: line crossing/zone violation/sound detection/anti-sabotage/face detection (1 channel); 2 USB ports; 100 Mbit LAN; RS-485; video outputs: HDMI/VGA/BNC; viewing and management via Internet PC/mobile phone (iOS/Android) with free CMS software iVMS-4200/Hik-Connect; P2P (HikCloud); mouse control; graphic menu in Bulgarian; without HDD; 12Vdc/10W; dimensions 315x242x45 mm



Weight ≤ 2.2 kg (without HDD, 4.9 lb)
