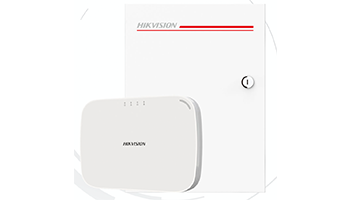

Hikvision DS-PHA64-W4M Hybrid Security Control Panel



DS-PHA series hybrid security control panel, containing on- board zones, supports wired/wireless alarm inputs and outputs expanding. It works with Wi-Fi, LAN, GPRS, and 3G/ 4G communication methods, as well as ISAPI, Ehome 5.0, and DC09 protocol. It is applicable to the scenarios of market, store, house, factory, warehouse, office, etc.



Features



• Dual path communication of alarm events and other signals over LAN, PSTN, Wi-Fi (-W model), GPRS and 3G/4G utilizing a main and backup channel with configurable priority

• 4/8 on-board wired zones, and expandable with up to 20/64 wired zones

• Up to 16/56 wireless inputs, 18/60 wireless outputs, 8 keyfobs, 1 wired siren and 2 wireless sirens

• Camera accessing (only supported by DS-PHAXX-W2/4)

• Pre-alarm (5 s) and post-alarm (2 s) recording for video verification to the alarm receiving email or mobile client

• Uploads alarm events to alarm receiving center or platform.

• Supports arming/disarming via keypad, mobile client, iVMS-4200, SMS, and tag

• Configuration via web client, Hik-Connect, or iVMS-4200

• Pushes alarm notification via messages and email

• AES-128-bit data encryption

• LED indicator for indicating system status

• Expandable PSTN, 3G/4G, and GPRS interface

• Supports RS-485 input and output expander

• Supports lithium battery (-P model) or storage battery (-M model)

• 1 manufacturer, 1 installer, 1 administrator, and 13 users (DS-PHA20)/45 users (DS-PHA64)
