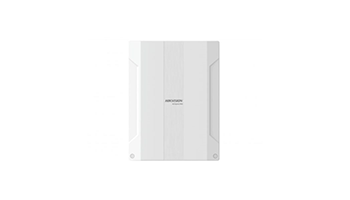

HIKVISION DS-PHA64-LP(B) Hybrid alarm panel with video verification



Hybrid alarm panel with video verification; supports up to 64 zones (of which up to 60 are wireless); up to 64 remotes; up to 8 keyboards; up to 7 wired zone expanders (56 zones in total); up to 1 wired / 8 wireless sirens; up to 64 users; up to 32 groups of zones; 8 hardware zone inputs on the board; 2 relay outputs + 2 I/O outputs (up to 64 via expanders). Built-in network LAN interface. RS-485. Setup via web interface/iVMS-4200/Hik-Connect; built-in memory for 4 pcs. Hikvision IP cameras for video verification with 7-sec. before/after alarm clips. Manage, view status and receive push alarm notifications on mobile devices via Hik-Connect free cloud service. Support of ISAPI / SIA Contact ID protocols; supports ISUP 5.0. ABS body in white color; built-in transformer 220Vac/32W; space for 1 pc. 7 Ah. accumulator; PVC box with built-in tamper;

dimensions 261×199×86.4 mm



Weight 996.5 g
