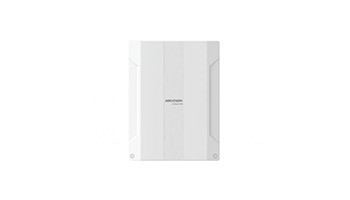

HIKVISION DS-PHA48-EP(B) Hybrid alarm panel with video verification



Hybrid alarm panel with video verification; supports up to 48 zones (of which up to 40 are wireless); up to 48 remotes; up to 4 keyboards; up to 5 wired zone expanders (40 zones in total); up to 1 wired / 8 wireless sirens; up to 48 users; up to 16 groups of zones; 8 hardware zone inputs on the board; 2 relay outputs + 2 I/O outputs (up to 48 via expanders). Built-in network LAN interface. RS-485. Setup via web interface/iVMS-4200/Hik-Connect; built-in memory for 2 pcs. Hikvision IP cameras for video verification with 7-sec. before/after alarm clips. Manage, view status and receive push alarm notifications on mobile devices via Hik-Connect free cloud service. Support of ISAPI / SIA Contact ID protocols; supports ISUP 5.0. ABS body in white color; built-in transformer 220Vac/30W; space for 1 pc. 7Ah battery; PVC box with built-in tamper;

dimensions 261×199×86.4 mm



Weight 996.5 g
