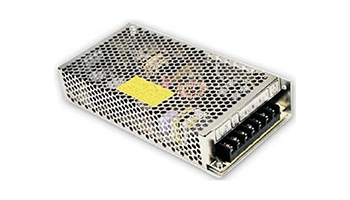

HIKVISION DS-KAW150-2N 150W 24V Power Adapter
Short circuit protection, over load protection, and over power voltage protection
Natural air cooling
LED power indicator
105 °C long life electrolytic capacitor
5 seconds 300VAC surge voltage input tolerance
General
-
Working TemperatureOperating: -10 °C to +70 °C (14 °F to 158 °F)
-
Storage: -25 °C to +85 °C (-13 °F to 185 °F)
-
Working Humidity< 95% (No Condensation)
-
Input Voltage100 VAC to 240 VAC
-
Output Voltage24 VDC
-
Output Current6.25 A
-
Output Power150 W
-
Noise And Ripple< 150 mVpp @ 25 °C
-
Voltage Adjustment Range23 VDC to 25 VDC
-
Cooling SystemConvection
-
Dimension (L X W X D)178 mm × 97 mm × 38 mm (7.01" × 3.82" × 1.50")
-
Weight 0.54 kg
