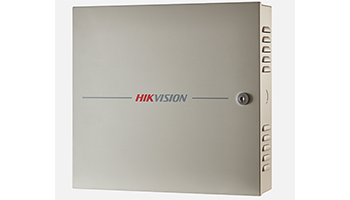

HIKVISION DS-K2604T(O-STD) Pro Series Access Controller



4-door controller on both sides. Supports 4 Wiegand (w26 / w34) / 8 RS-485 OSDP readers. 8 relay outputs (4 for door control, 4 alarm). 21 Alarm inputs (4 for door status, 4 for Exit buttons, 1 tamper, 8 programmable, 4 programmable with EOL resistor). Buffer memory for 100,000 users (expandable up to 200,000 after order) and log up to 300,000 events (expandable up to 600,000). Built-in TCP / IP and RS-485 communication interfaces. LED status indication (power supply, communication, system problem). Supports NTP time synchronization, watchdog function, online / offline mode. Power relay for door control when integrated with a fire system. Anti-passback with Hik-Central, Multi Door Interlock function, Group authorization for unlocking doors, Allowing user access with main card, Encryption and locking of Mifare cards to the system. Included in the set is a metal box (dimensions 370x345x90 mm) with a switch and power supply 220 / 12V 100W with the possibility of battery backup.
